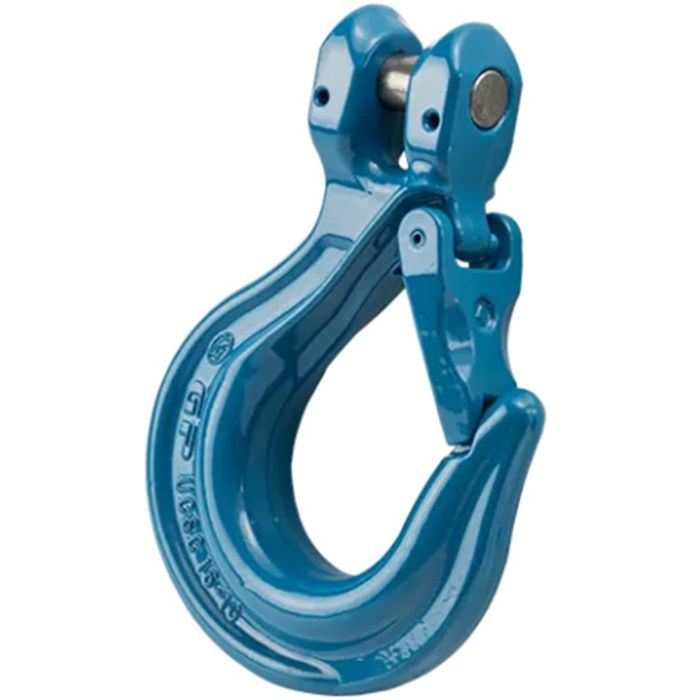

The Green Pin® Sling Hook CL is a grade 10 clevis sling hook. The sling hook can be used for general lifting applications. It can be quickly connected to the load lifting points thanks to its easy operating latch, which guarantees full safety. To connect simply push the latch, connect the hook to the lifting point, and release the latch. The forged latch guarantees a longer lifespan. It strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin. The clevis design enables a direct connection to grade 10 chain.
- Fits Chain Size: 1/2″ (13mm)
- Working Load Limit (WLL): 6.8 tons (14,960 lbs)
- Clevis Width: 19/32″
- Pin Diameter: 5/8″
- Hook Opening: 1-15/32″
- Overall Length: 8.19″
- Material: Grade 100 Alloy Steel (quenched and tempered)
- Finish: Painted Blue
- Design Factor 4:1
- Made in France
