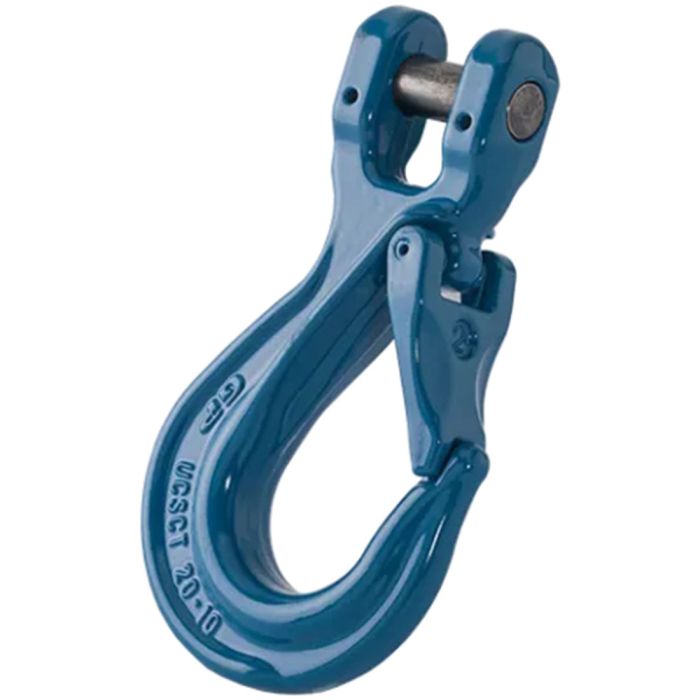

The Green Pin Tycan® Sling Hook CL GR10 is a clevis sling hook with a safety latch that prevents the sling from sliding back. Specially designed for Green Pin Tycan®.
- For Green Pin Tycan® Chain: 1/2″ x 1-3/16″
- Working Load Limit (WLL): 6.8 tons (14,960 lbs)
- Clevis Width: 1-1/4″
- Pin Diameter: 25/32″
- Hook Opening: 1-15/32″
- Overall Length: 9-1/4″
- Material: Grade 100 Alloy Steel (quenched and tempered)
- Finish: Painted Blue
- Design Factor 4:1 (Lashing MBL 2:1)
- Made in France
