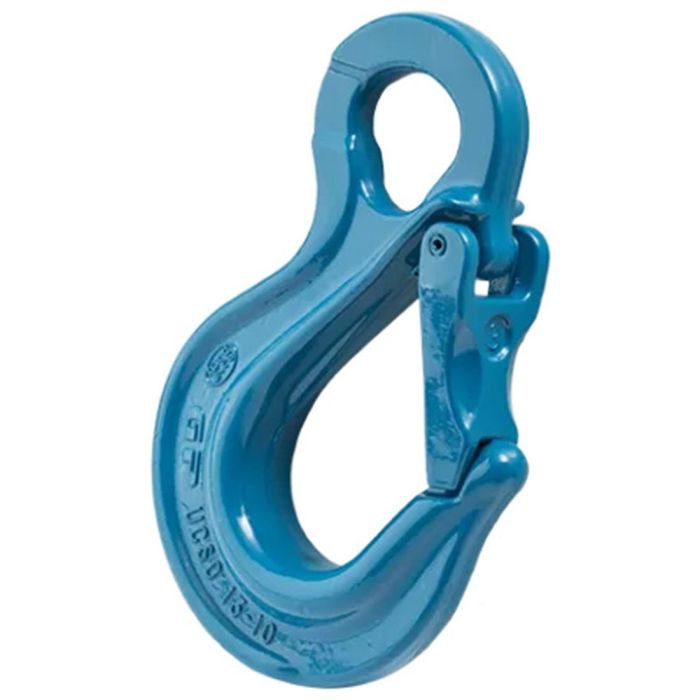

Green Pin UCSO Grade 100 Eye Sling Hook 7/32″ (WLL 3080 lbs)

The Green Pin® Sling Hook E is a grade 10 eye sling hook. The sling hook can be used for general lifting applications. It can be quickly connected to the load lifting points thanks to its easy operating latch, which guarantees full safety. To connect simply push the latch, connect the hook to the lifting point, and release the latch. The forged latch guarantees a longer lifespan. It strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin. The eye of the hook can be connected to grade 10 chain with a connecting link or an omega link, to a webbing with a web sling connector or to a wire rope with a thimble. The flat on the eye enables the assembly with an omega link or on a thimble.

• Fits Chain Size: 7/32″ (6mm)
• Working Load Limit (WLL): 1.4 tons (3080 lbs)
• Eye Inside Diameter: 29/32″
• Hook Opening: 1-1/32″
• Overall Length: 4.49″
• Material: Grade 100 Alloy Steel (quenched and tempered)
• Finish: Painted Blue
• Design Factor 4:1
• Made in France
