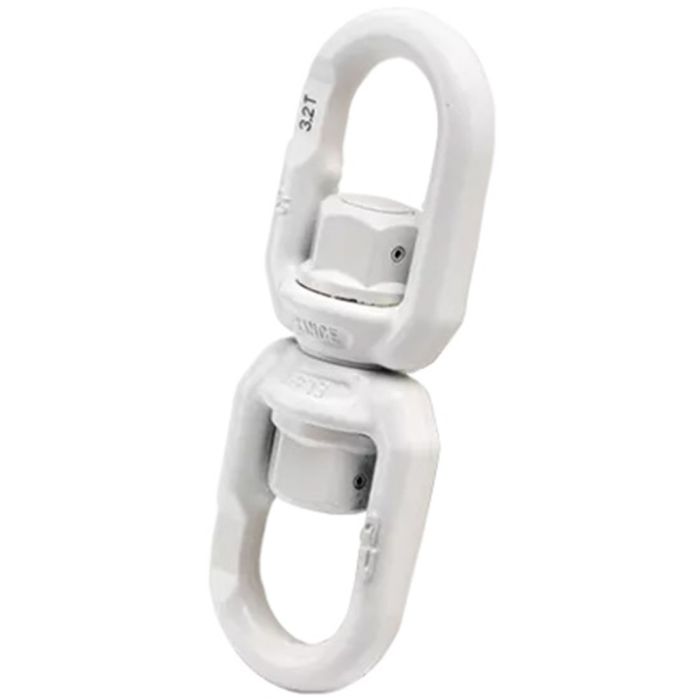

Green Pin UELR Grade 100 Eye & Eye Needle Bearing Swivel 31/32″ (WLL 16 ton)

The Green Pin® Needle Bearing Swivel EE is a grade 10 needle bearing eye-eye swivel. Needle bearing swivels are used to prevent any transfer of the normal twisting motion from the load to the chain. These swivels are fitted with a needle roller thrust bearing on both eyes. This enables smooth, easy rotation under load.

• Size: 31/32″ (25mm)
• Working Load Limit (WLL): 16 tons (35,200 lbs)
• Eye Inside Length: 3-15/32″
• Eye Inside Width: 3-7/32″
• Overall Length: 14.88″
• Material: Grade 100 Alloy Steel (quenched and tempered)
• Finish: Painted Blue
• Design Factor 4:1
• Imported
