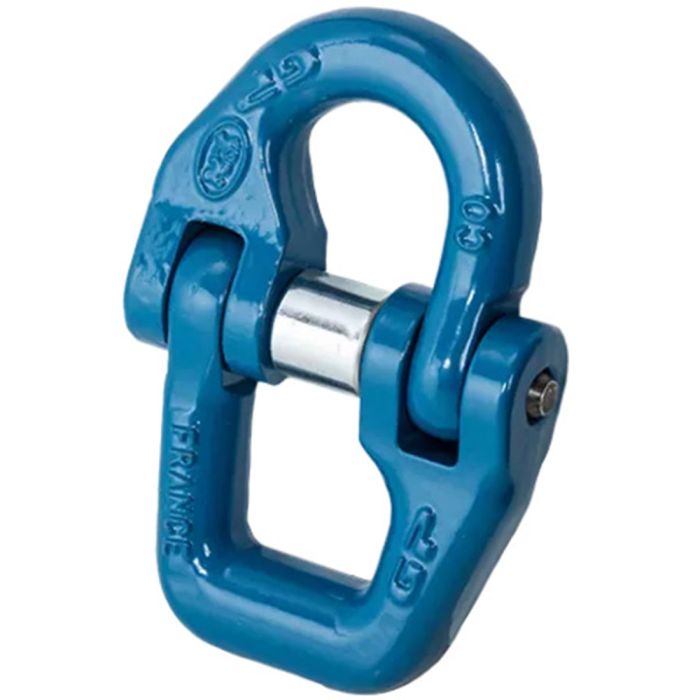

Green Pin UMJT Tycan® Grade 100 Connecting Link 25/32″ (WLL 8800 lbs)

The Green Pin Tycan® Connecting Link GR10 is specifically designed for connecting Green Pin Tycan® chain slings. Made from grade 10 high-tensile steel, this link ensures durability and reliable performance for demanding applications.

• Fits Tycan® Chain: 11mm x 20mm (7/16″ x 25/32″)
• Working Load Limit (WLL): 4.00 tons (8800 lbs)

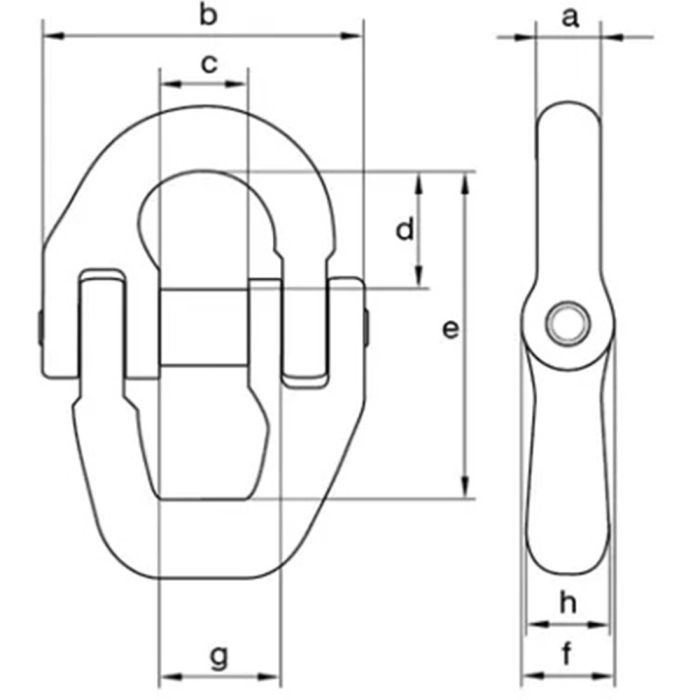

• (a): 12mm (15/32″)
• (b): 66mm (2-19/32″)
• (c): 18mm (23/32″)
• (d): 23mm (29/32″)
• (e): 67mm (2-5/8″)
• (f): 18mm (23/32″)
• (g): 23mm (29/32″)
• (h): 16mm (5/8″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1 (Lashing MBL 2:1)
