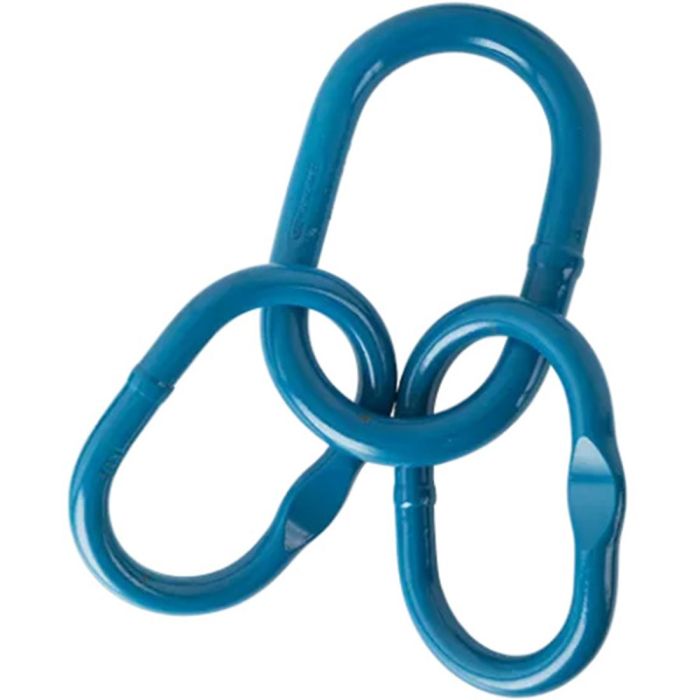

Green Pin UMTS Grade 100 Welded Master Link Assembly 1-3/8″ (WLL 38,940 lbs)

The Green Pin® Master Link Assembly is a grade 10 master link assembly. This welded master link assembly is designed for 3 or 4 leg sling. The flat on the eye enables the assembly with an omega link or on a thimble.

• Size (main link thickness): 1-3/8″
• Inside Width (main link): 10.63″
• Inside Length (main link): 5.71″
• Working Load Limit (WLL): 17.7 tons (38,940 lbs)
• Material: Grade 100 Alloy Steel (quenched and tempered)
• Finish: Painted Blue
• Temp. Range: -40°C up to +200°C
• Design Factor 4:1
• Imported
