Green Pin UMTS Grade 100 Welded Master Link Assembly 11/16″ (WLL 8030 lbs)

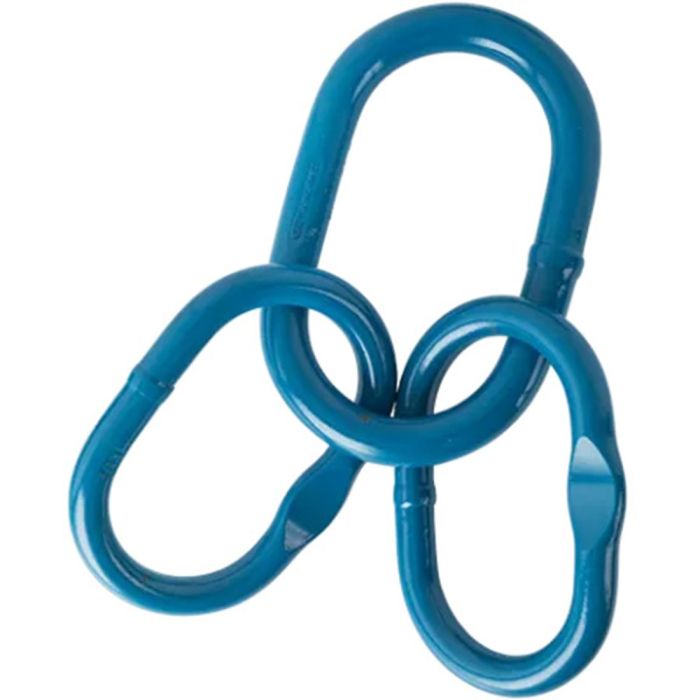

The Green Pin® Master Link Assembly is a grade 10 master link assembly. This welded master link assembly is designed for 3 or 4 leg sling. The flat on the eye enables the assembly with an omega link or on a thimble.

• Size (main link thickness): 11/16″
• Inside Width (main link): 5.31″
• Inside Length (main link): 2.95″
• Working Load Limit (WLL): 3.65 tons (8030 lbs)
• Material: Grade 100 Alloy Steel (quenched and tempered)
• Finish: Painted Blue
• Temp. Range: -40°C up to +200°C
• Design Factor 4:1
• Imported
