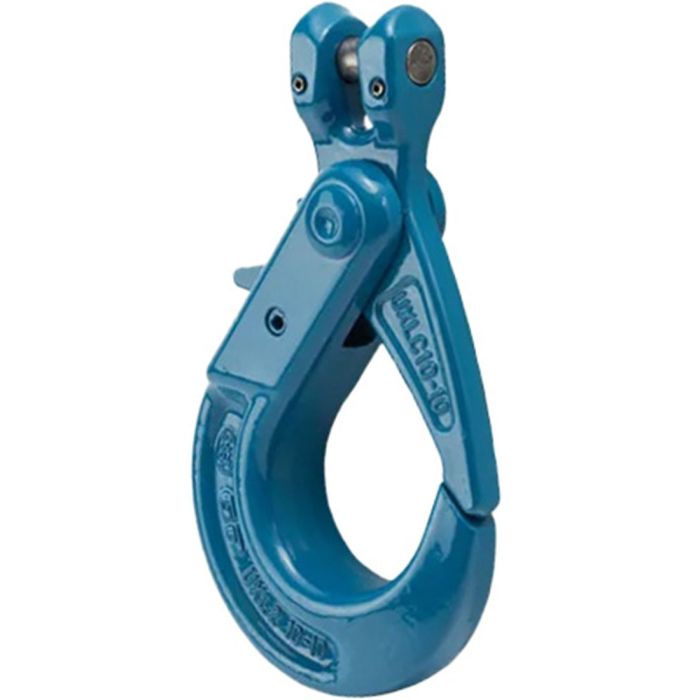

The Green Pin® Self-Locking Hook CL is a grade 10 clevis self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load, the user must manually unlock the hook, which prevents unintended release. This hook ensures full safety for lifting, as the latch cannot be removed. The clevis design enables a direct connection to grade 10 chain.
- Fits Chain Size: 1/2″ (13mm)
- Working Load Limit (WLL): 6.8 tons (14,960 lbs)
- Hook Opening: 2-15/32″
- Pin Diameter: 5/8″
- Overall Length: 9.53″
- Material: Grade 100 Alloy Steel (quenched and tempered)
- Finish: Painted Blue
- Design Factor 4:1
- Made in France
