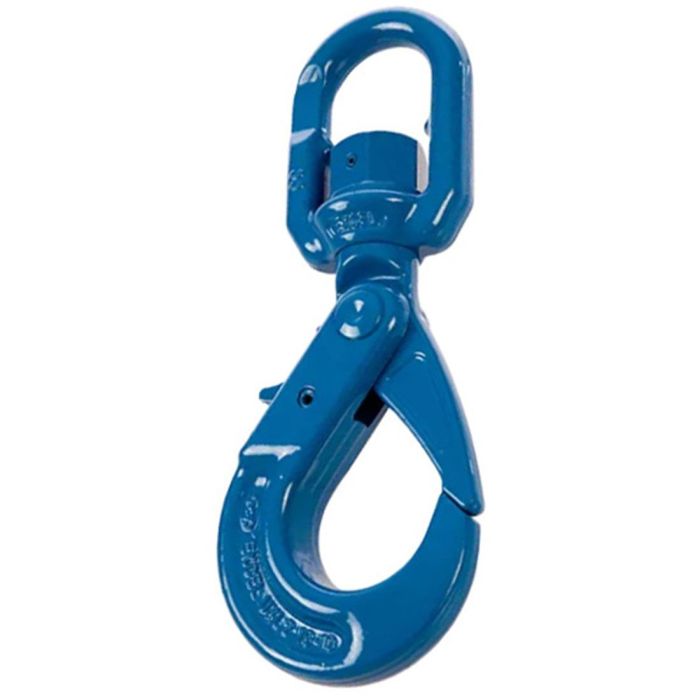

Green Pin UXLE Grade 100 Swivel Self-Locking Hook 5/8″ (WLL 22,660 lbs)

The Green Pin® Self-Locking Hook SE is a grade 10 swivel self-locking hook with an eye. The self-locking hook locks automatically as soon as it is brought under tension. To release the load, the user must manually unlock the hook, which prevents unintended release. This hook ensures full safety for lifting, as the latch cannot be removed. The large eye, designed with a flat, enables easy assembly on anti-rotating wire rope slings (with an omega link or with thimbles). These hooks are fitted with a needle roller thrust bearing, enabling smooth, easy rotation under load. The eye of the hook can be connected to grade 8 chain with a connecting link or to webbing with a web sling connector.

• Fits Chain Size: 5/8″ (16mm)
• Working Load Limit (WLL): 10.3 tons (22,660 lbs)
• Hook Opening: 2-15/16″
• Eye Inside Length: 2-5/8″
• Eye Inside Width: 2-7/8″
• Overall Length: 16.54″
• Material: Grade 100 Alloy Steel (quenched and tempered)
• Finish: Painted Blue
• Design Factor 4:1
• Made in France
