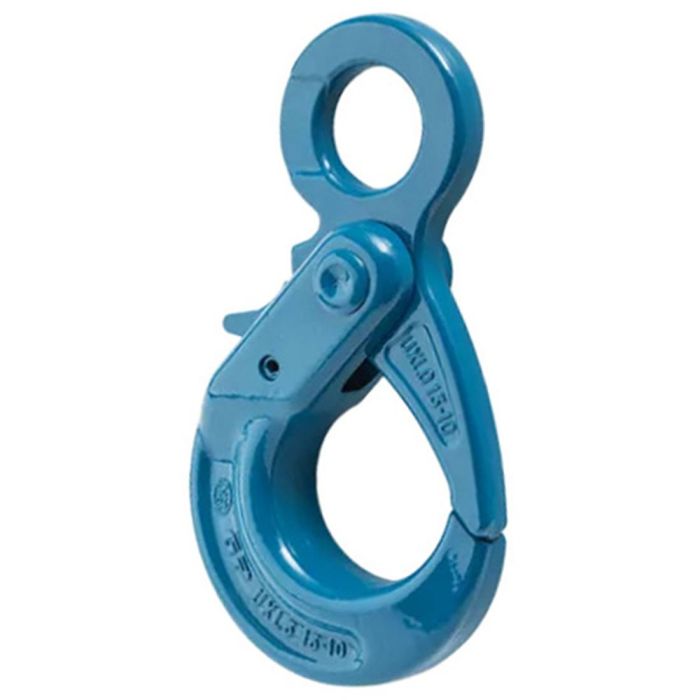

Green Pin UXLO Grade 100 Eye Self-Locking Hook 5/8″ (WLL 22,660 lbs)

The Green Pin® Self-Locking Hook E is a grade 10 eye self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load, the user must manually unlock the hook, which prevents unintended release. This hook ensures full safety for lifting, as the latch cannot be removed. The eye of the hook can be connected to grade 10 chain with a connecting link, to webbing with a web sling connector, or to a wire rope with a thimble. The flat on the eye enables assembly with an omega link or on a thimble.

• Fits Chain Size: 5/8″ (16mm)
• Working Load Limit (WLL): 10.3 tons (22,660 lbs)
• Hook Opening: 2-15/16″
• Eye Inside Diameter: 2-3/8″
• Overall Length: 13.07″
• Material: Grade 100 Alloy Steel (quenched and tempered)
• Finish: Painted Blue
• Design Factor 4:1
• Made in France
