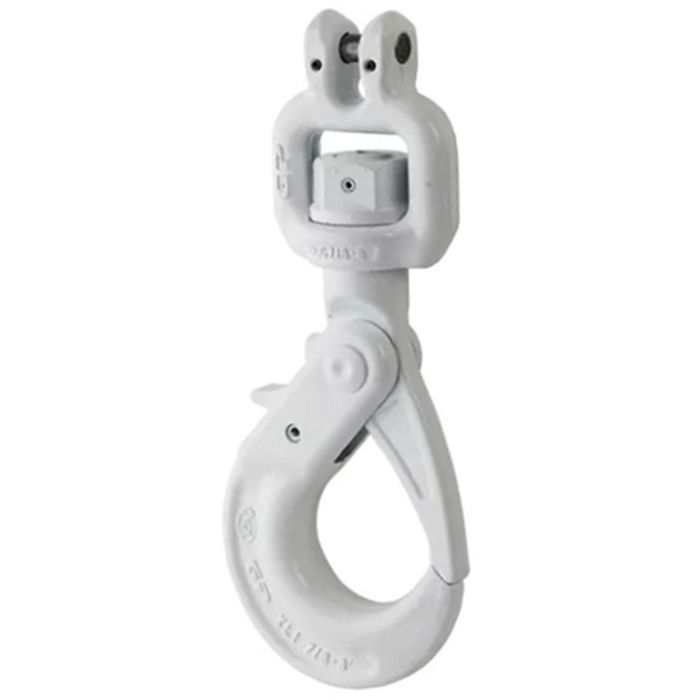

Green Pin XLBA Grade 80 Swivel Clevis Self-Locking Hook 7/32″ (WLL 2464 lbs)

The Green Pin® Self-Locking Hook SCL EN1677-3 is a grade 8 swivel self-locking hook with clevis according to the European standard for components for slings, EN 1677-3. The self-locking hook locks automatically as soon as it is brought under tension. To release the load, the user must manually unlock the hook, which prevents unintended release. This hook ensures full safety for lifting, as the latch cannot be removed. These hooks are fitted with a needle roller thrust bearing, enabling smooth, easy rotation under load. The clevis design allows for a direct connection to grade 8 chain. Additionally, this hook can be connected to a 5, 7, or 9 mm hoist chain, but a specific load pin must be ordered from Van Beest.

• Fits Chain Size: 7/32″ (6mm)
• Working Load Limit (WLL): 1.12 tons (2464 lbs)
• Hook Opening: 1-1/4″
• Pin Diameter: 5/16″
• Overall Length: 7.32″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
