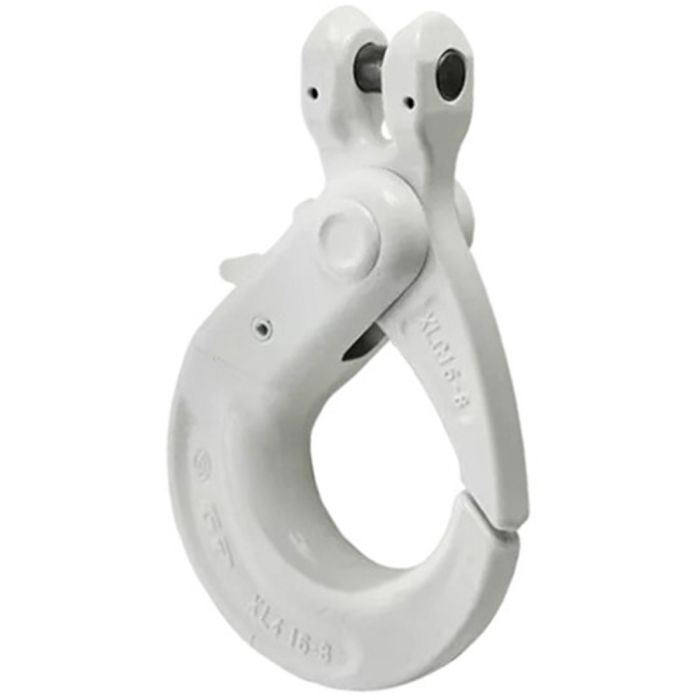

The Green Pin® Self-Locking Hook CL EN1677-3 is a grade 8 clevis self-locking hook according to the European standard for components for slings, EN 1677-3. The self-locking hook locks automatically as soon as it is brought under tension. To release the load, the user must manually unlock the hook, which prevents unintended release. This hook ensures full safety for lifting, as the latch cannot be removed. The clevis design enables a direct connection to grade 8 chain.
- Fits Chain Size: 3/8″ (10mm)
- Working Load Limit (WLL): 3.2 tons (7040 lbs)
- Hook Opening: 1-7/8″
- Pin Diameter: 1/2″
- Overall Length: 7.91″
- Material: Grade 80 Alloy Steel (quenched and tempered)
- Finish: Painted White
- Design Factor 4:1
- Made in France
