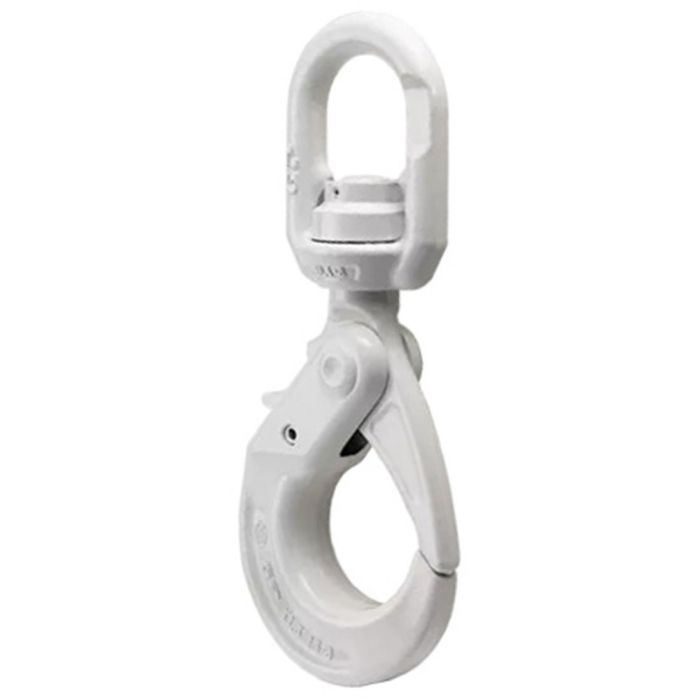

Green Pin XLE Grade 80 Swivel Self-Locking Hook 3/4″ (WLL 28,160 lbs)

The Green Pin® Self-Locking Hook SE EN1677-3 is a grade 8 swivel self-locking hook with an eye according to the European standard for components for slings, EN 1677-3. The self-locking hook locks automatically as soon as it is brought under tension. To release the load, the user must manually unlock the hook, preventing unintended release and ensuring full safety for lifting, as the latch cannot be removed. The large eye, designed with a flat, enables easy assembly on anti-rotating wire rope slings, either with an omega link or with thimbles. These hooks are fitted with a needle roller thrust bearing, allowing smooth, easy rotation under load. The eye of the hook can be connected to grade 8 chain with a connecting link or to webbing with a web sling connector.

• Fits Chain Size: 3/4″ (18mm-20mm)
• Working Load Limit (WLL): 12.8 tons (28,160 lbs)
• Hook Opening: 3-17/32″
• Eye Inside Length: 3-7/16″
• Eye Inside Width: 3-7/32″
• Overall Length: 18.82″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
