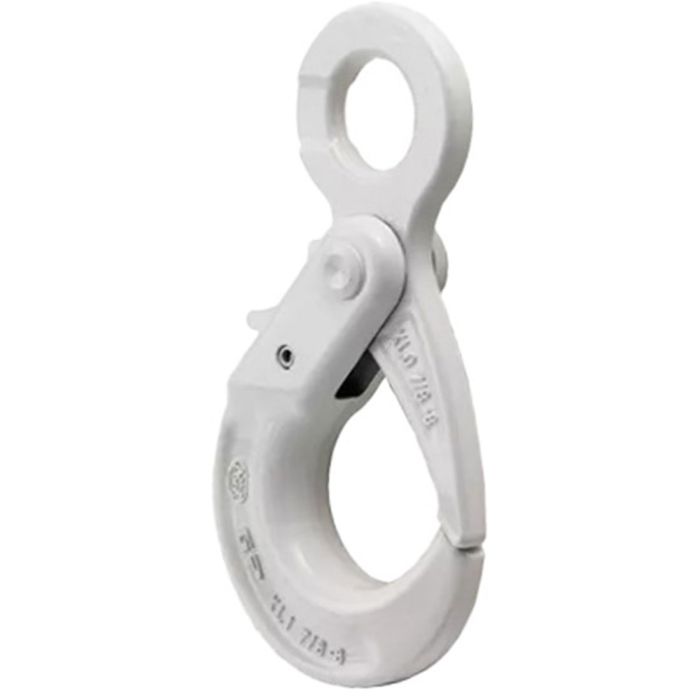

Green Pin XLO Grade 80 Eye Self-Locking Hook 3/4″ (WLL 28,160 lbs)

The Green Pin® Self-Locking Hook E EN1677-3 is a grade 8 eye self-locking hook according to the European standard for components for slings, EN 1677-3. This self-locking hook automatically locks as soon as it is brought under tension. To release the load, the user must manually unlock the hook, ensuring prevention of unintended release and providing full safety for lifting, as the latch cannot be removed. The eye of the hook can be connected to grade 8 chain with a connecting link, to webbing with a web sling connector, or to a wire rope with a thimble.

✻ The 12.8-ton self-locking hook has no flat surface on the eye part. ✻

• Fits Chain Size: 3/4″ (18mm-20mm)
• Working Load Limit (WLL): 12.8 tons (28,160 lbs)
• Hook Opening: 3-17/32″
• Eye Inside Diameter: 2-3/4″
• Overall Length: 14.69″
• Material: Grade 80 Alloy Steel (quenched and tempered)
• Finish: Painted White
• Design Factor 4:1
• Made in France
