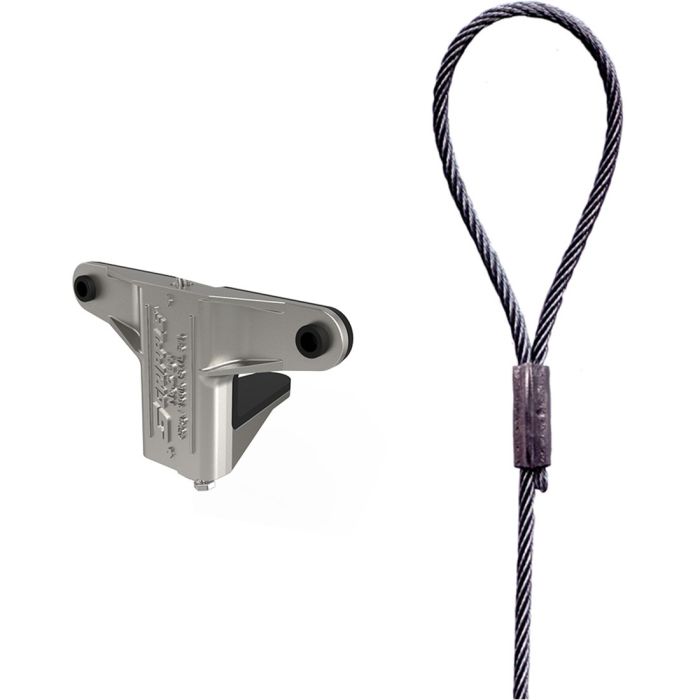

Gripple No. 2 Duct Trapeze Loop Hanger 10′

Cable hanger with one-way fastener or the fast suspension of rectangular duct and similiar equipment in an indoor stationary setting.

Features:

• Attaches to bottom of duct with self-drilling screws (not included)
• Suitable for ducting made from 0.6 – 1.5 mm gauge steel
• Conforms to DW144 class D
• Release pin allows rapid height adjustment
• *** NOT suitable for use in chlorinated / swimming pool environments ***

Specifications:

• Cable No. 2:
  • Cable Diameter: 5/64″
  • Cable Length: 10′
  • Strand Configuration: 7×7
  • Galvanized high tensile steel cable to EN12385
• Fastener Material:
  • Housing: Type ZA2 Zinc
  • Wedge: Sintered steel hardened to min. 56 Rockwell C
  • Spring: Stainless Steel (Type 302)
  • End Cap: UV Stabilized Homopolymer Propylene
• Working Load Limit: 100 lbs (5:1 Safety Factor)
