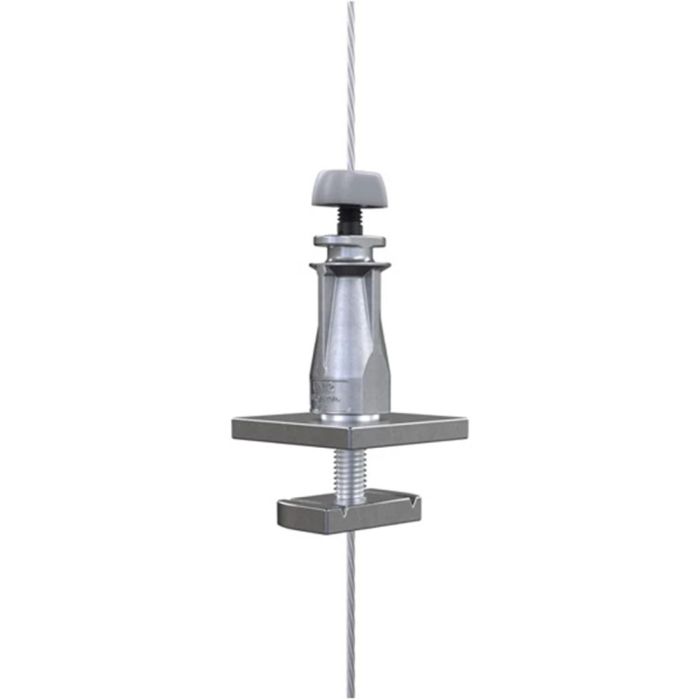

Gripple No. 2 Uni-Grip Center Exit Loop 10′

The next generation of wire rope suspension products designed for the fast suspension of cable containment, pipework, ductwork, HVAC systems and modules, including multi-tier installations.

Features:

• Up to 6 times faster than traditional suspension systems
• Can be pre-installed to channel using pre-fitted washer/nut or using retention clip reducing time working at height
• Integral ergonomically designed release button allows for simple adjustment
• Button acts as a locking screw and indicator clearly highlights the cable is locked in position for ultimate security
• Variety of foot attachments available to suit applications
• *** NOT suitable for use in chlorinated / swimming pool environments ***

Specifications:

• Thread Size: 3/8″ (UniGrip #2)
• Cable Length: 10′
• Cable Construction: 7×7
• Max. Off Axis Suspension: 15º
• Max. Torque: 4 lb.-ft (5Nm)
• Housing Material: Type ZA2 Zinc
• Carriage Material: Acetal Copolymer
• Wedge Material: Sintered steel
• Button Material: Acetal Copolymer
• Working Load Limit: 120 lbs (5:1 Safety Factor)
