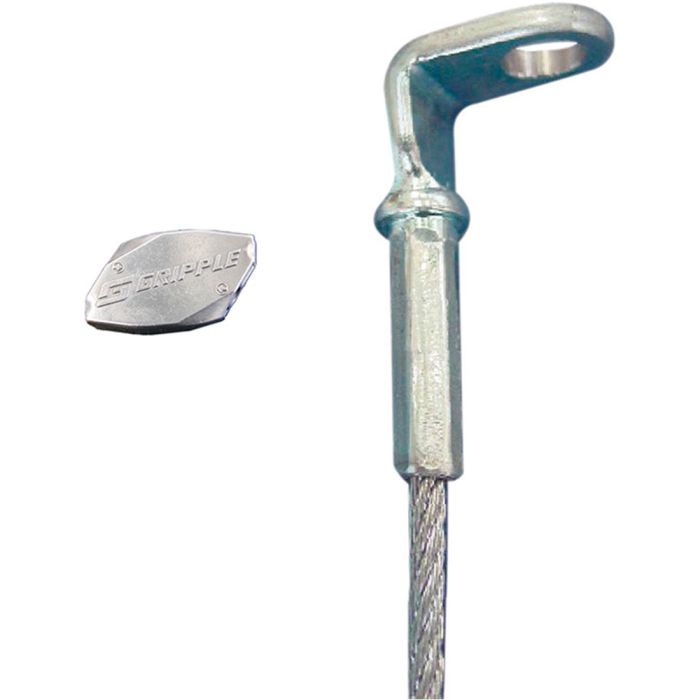

Gripple No. 3 90° Eyelet Hanger 5′

Cable hanger with fastener for the fast suspension of a variety of services in an indoor stationary setting.

Features:

• For shot firing into concrete or steel
• Can be used with mechanical anchors
• Ideal for use with Gripple concrete screws for direct soffit mounting
• *** NOT suitable for use in chlorinated / swimming pool environments ***

Specifications:

• Anchor Size: 1/4″
• Cable No. 3:
  • Cable Diameter: 1/8″
  • Cable Length: 5′
  • Strand Configuration: 7×7
  • Galvanized high tensile steel cable to EN12385
• Fastener Material:
  • Housing: Type ZA2 Zinc
  • Wedge: Sintered steel hardened to min. 56 Rockwell C
  • Spring: Stainless Steel (Type 302)
  • End Cap: UV stabilized homopolymer propylene
• Working Load Limit: 200 lbs (5:1 Safety Factor)
