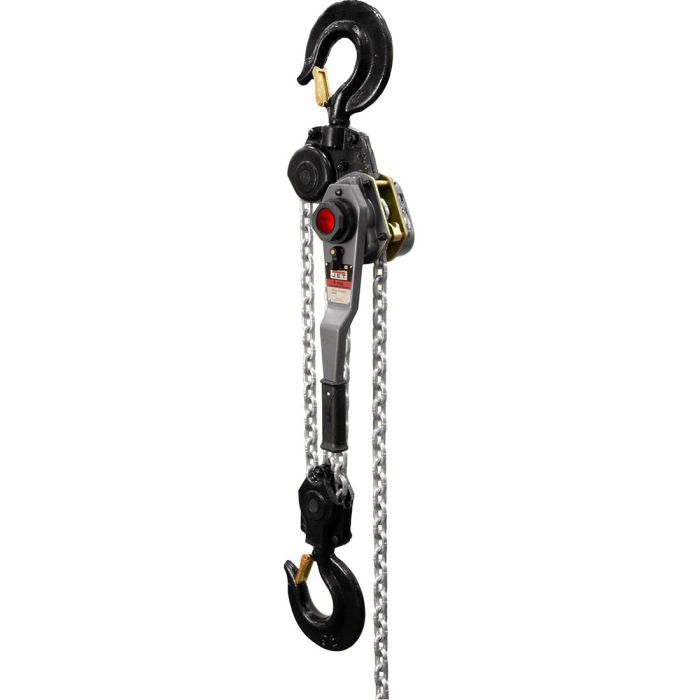

JET JLH-900WO-5 Lever Hoist 9 Ton 5′ Lift

JET® JLH Series Lever Hoists incorporate safety, durability, and heavy duty construction for operation in severe industrial environments. Safety comes standard with features such as overload protection, which prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity. Whether it’s inverted, vertical, horizontal, or any other load angle, the JET JLH lever hoist is the solution for your heavy-duty industrial needs.

• Capacity: 9 ton (18,000 lbs)
• Lift: 5′
• Headroom (Min distance between hooks): 26.80″
• Equipped with latching slip hooks
• Impact resistant all steel construction for added durability and protection
• JET’s revolutionary single-piece brake design fuses the three components into the safest brake system in the market
• Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
• Enhanced ergonomic grip allows for greater operator control and increased comfort
• Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
• Heat Treated Load Plates
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
• Load tested to 125% of capacity with certificate
• All JLH-Series Lever Hoists come with slip clutch style overload protection that prevents lifting or pulling damaging loads beyond the rated capacity of the hoist and when triggered, the overload protection can be reset on site
• Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• The lightweight design with shorter handle and smaller body are ideal for confined areas and low headroom applications
• Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
