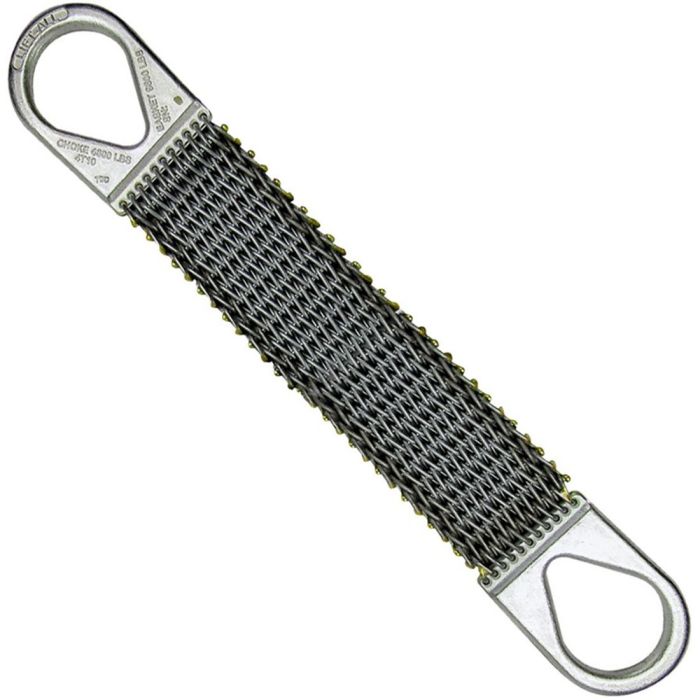

Lift-All® 10-Gauge Wire Mesh Sling 6″ x 22′ (Triangle & Triangle)

Lift-All Wire Mesh Sling is widely used in metalworking shops and steel warehouses where loads are abrasive, hot or tend to cut web slings.

Features:

• Steel construction resists abrasion and cutting
• Grips contour of the load
• Each sling is proof-tested and certified
• Grips load firmly without stretching – reduces load damage
• Resists abrasion and cutting for greater sling life
• Low stretch and wide-bearing area distributes load to help avoid damage
• Alloy steel end fittings are zinc plated for long life
• Wire mesh is galvanized to resist corrosion

Specifications:

• Length: 22′
• Width: 6″
• Wire Gauge: 10
• Vertical Capacity: 7200 lbs
• Choker Capacity: 7200 lbs
• Basket Capacity: 14,400 lbs
• Terminal Thickness: 1/2″
• Terminal Dimensions:
  • Diameter: 3.50″
  • Inside Length: 4.50″
  • Triangle Length: 5.63″
  • Choker Length: 7.75″
• End Fittings: Triangle & Triangle
• Wire mesh slings shall not be used at temperatures above 550°F

Warning:

• Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases
• Slings should not be used at angles of less than 30°
• Refer to Effect of Angle chart in General Information section
• Choker fitting must not be positioned against a load edge or directly on the triangle fitting
