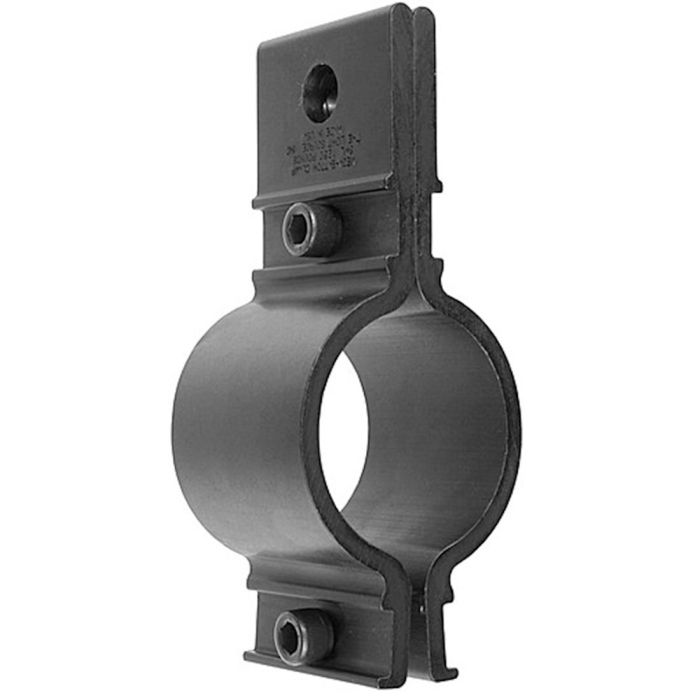

Light Source Mega-Batten Clamp – Black

The Light Source Mega Batten Clamp is great way to hang 1-1/2″ pipe. The tight compression fit prevents pipe rotation within the clamp.The Mega Batten Clamp wraps around the pipe batten on both sides and fastens with two 5/16″-18 TPI Socket Cap Screws using a 1/4″ hex driver.

• Secure to structural supports through nominal 1/2″ hole at the top of the clamp
• Use up to a 7/16″ shackle pin, quick link, or turnbuckle jaw for securing
• CNC Machined from 3/16″ thick x 2″ wide 6061T-6 Aluminum
• Includes:
• 1″x 5/16″ socket head cap bolt
• 5/16″ zinc plated nylon hexbolt
• Color: Black
• Minimum Size: 1.5″ Pipe with 1.9″ Outer Diameter
• Maximum Size: 2″ Outer Diameter Pipe
• Working Load Limit: 1250 Lbs
• Height: 5-1/2″
• Width: 2″
• Thickness: 1/4″
