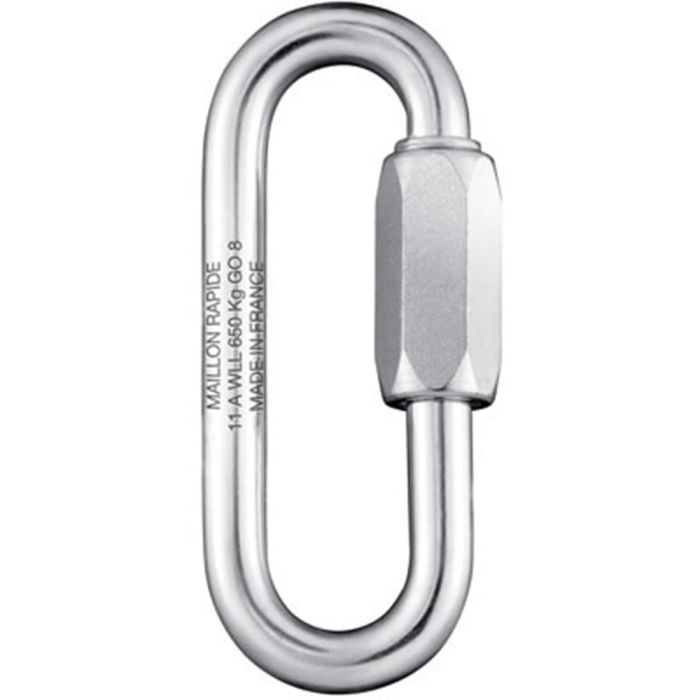

Maillon Rapide Quick Link Long 9/32″

Maillon Rapide Large Opening Oval Quick Links provide a fast, easy, and durable connection. Large opening offers an easier connection to wider components.

• Material: Zinc Plated Steel
• Rod: custom-made steel used in surface processing, providing complete strength towards traction
• Nut: high safety steel (lead-free, systematic control carried out after drawing through Eddy currents and ultrasounds)
• Surface processing made through electrolytic coating on the entire material (rod & nut)
• Shape: Large Opening Oval
• Material Diameter: 9/32″
• 1100 lbs Working Load Limit
• ***WARNING – NOT RATED FOR CLIMBING OR LIFTING***

Recommendations:

• Keep to the working load limit WLL engraved in kg.
• Visual check of complete nut screwing compulsory; no thread must be showing
• Maillon Rapide quick links are only to be loaded along the major axis
• Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one
• When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector
• Should always be fitted with parts made of same material
• When connected with chain, Maillon Rapide quick links should be of the same diameter.
• Never connect any Maillon Rapide quick links onto a lifting chain
• Made in France
