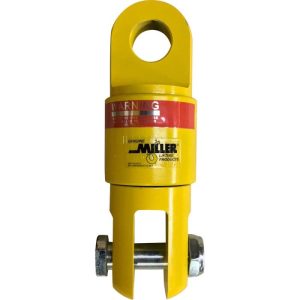

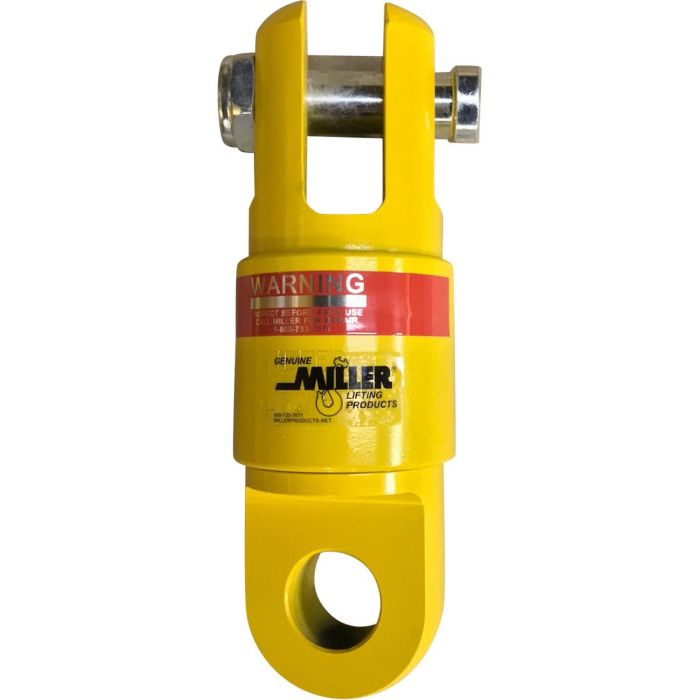

Miller Lifting Products 15E182 Thrust Bearing Swivel, Jaw to Eye (WLL 15 ton)

$382.00

We Offer Customization & Great Prices! Feel Free to Contact Us!

10000 in stock

SKU: 8ce2fd93ac7749ce Category: Bearing Swivels

Description

Economical Miller thrust bearing swivel
Working load limit 15 tons at 4:1 design factor
Jaw to Eye
Sealed, maintenance-free
Yellow enamel finish
Length: 14.8″
Width: 4.1″
Height: 4.1″
Wire Rope Size: 1″
Clevis Pin Diameter: 1.38″
Eye Hole Diameter: 2.06″
Clevis Inside Width: 1.75″
Eye Tang Thickness: 1.94″
Eye to Clevis Pin Center Distance: 11.13″
Working Load Limit: 15 tons (30000 lbs)
