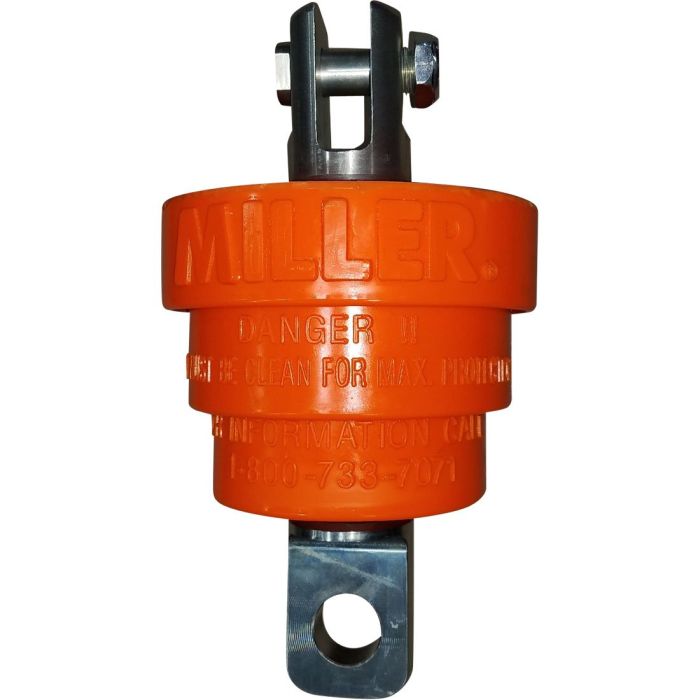

- Model 1VD2, Jaw to Eye
- Working load limit 5 tons at 5:1 design factor
- Rated to 25,000 VAC
- Non-swiveling
- Meets ASTM F 2973
- Length: 18″
- Width: 7.4″
- Height: 7.4″
- Voltage Rating: 25,000 VAC
- Clevis Pin Diameter: 0.88″
- Clevis Inside Width: 1.00″
- Pin Center to Hook Seat: 15.06″
- Hook Opening: 1.78″
- Insulator Body Diameter: 7.38″
- Working Load Limit: 5 tons (10,000 lbs)
