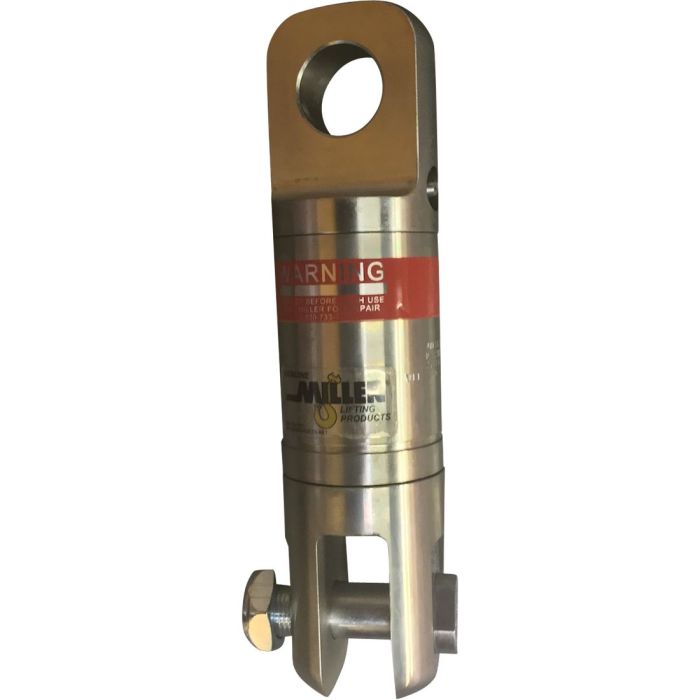

- Angular contact ball bearing wire rope swivel
- Working load limit 8.5 tons at 5:1 design factor
- Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Length: 12.3″
- Width: 3.456″
- Height: 2.88″
- Wire Rope Size: 3/4″
- Clevis Pin Diameter: 1.19″
- Eye Hole Diameter: 1.41″
- Clevis Inside Width: 1.56″
- Eye Tang Thickness: 1.25″
- Eye to Clevis Pin Center Distance: 9.50″
- Working Load Limit: 8.5 tons (17,000 lbs)
