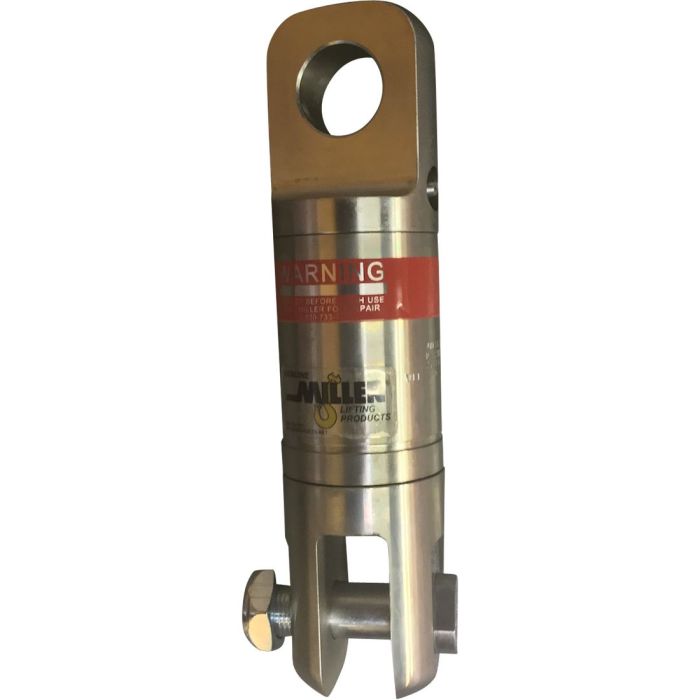

- Angular contact ball bearing wire rope swivel
- Working load limit 10 tons at 5:1 design factor
- Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Length: 17.5″
- Width: 4.8″
- Height: 4″
- Wire Rope Size: 7/8″
- Clevis Pin Diameter: 1.50″
- Eye Hole Diameter: 1.66″
- Clevis Inside Width: 1.75″
- Eye Tang Thickness: 1.72″
- Eye to Clevis Pin Center Distance: 13.94″
- Working Load Limit: 10 tons (20,000 lbs)
