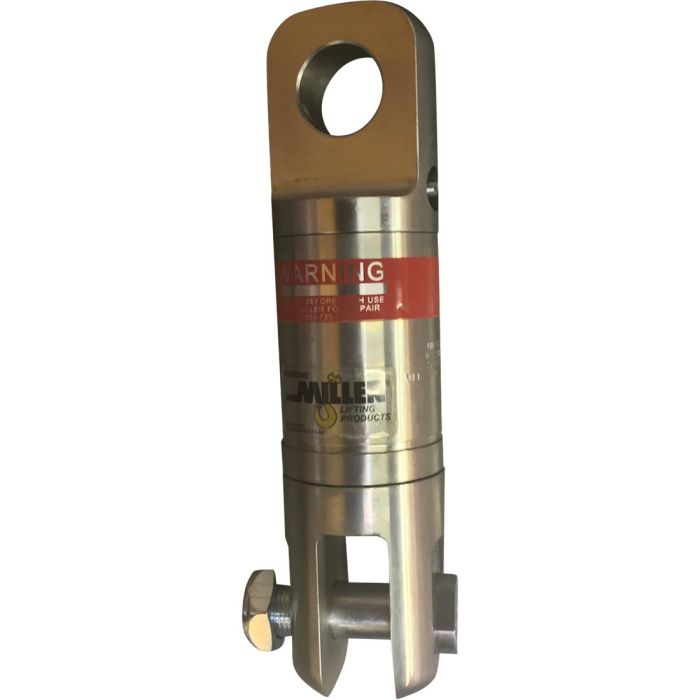

- Angular contact ball bearing wire rope swivel
- Working load limit 25 tons at 5:1 design factor
- Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Length: 20.7″
- Width: 7″
- Height: 5″
- Wire Rope Size: 1-1/4″
- Clevis Pin Diameter: 2.00″
- Eye Hole Diameter: 2.31″
- Clevis Inside Width: 2.00″
- Eye Tang Thickness: 2.25″
- Eye to Clevis Pin Center Distance: 15.94″
- Working Load Limit: 25 tons (50,000 lbs)
