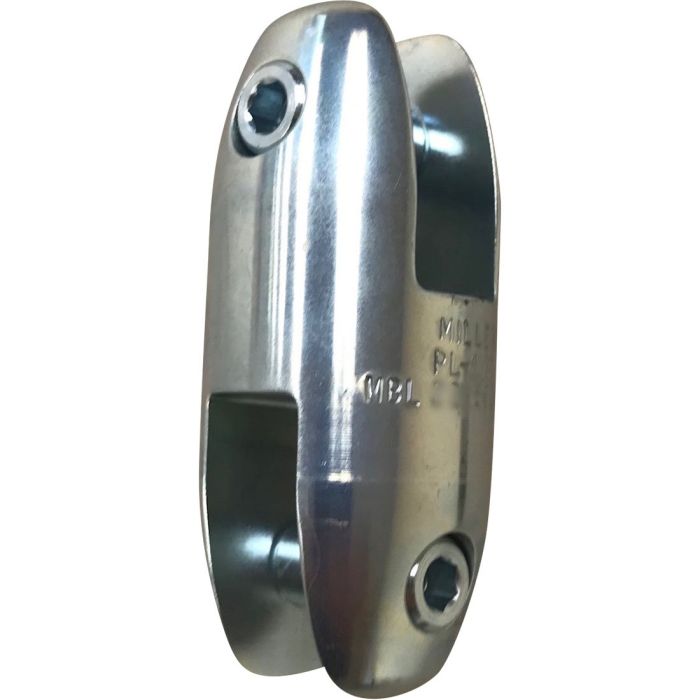

- Pengo-Miller 90° connector for line pulling
- Alloy steel, zinc-coated, hex drive pins
- Not for overhead lifting
- For conductor pulling only
- Length: 5.6″
- Width: 2.5″
- Height: 2.5″
- Clevis Inside Width: 1.00″
- Body Diameter: 2.44″
- Pin Diameter: 0.88″
- Pin to Pin Center: 3.38″
- Minimum Breaking Load: 30 tons (60000 lbs)
