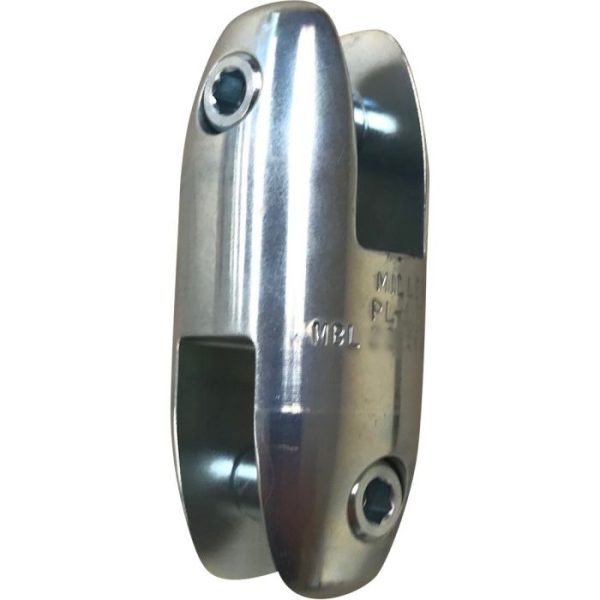

- Pengo-Miller 90° connector for line pulling
- Alloy steel, zinc-coated, hex drive pins
- Not for overhead lifting
- For conductor pulling only
- Length: 2.6″
- Width: 1.3″
- Height: 1.3″
- Clevis Inside Width: 0.59″
- Body Diameter: 1.25″
- Pin Diameter: 0.38″
- Pin to Pin Center: 1.75″
- Minimum Breaking Load: 6 tons (12000 lbs)
