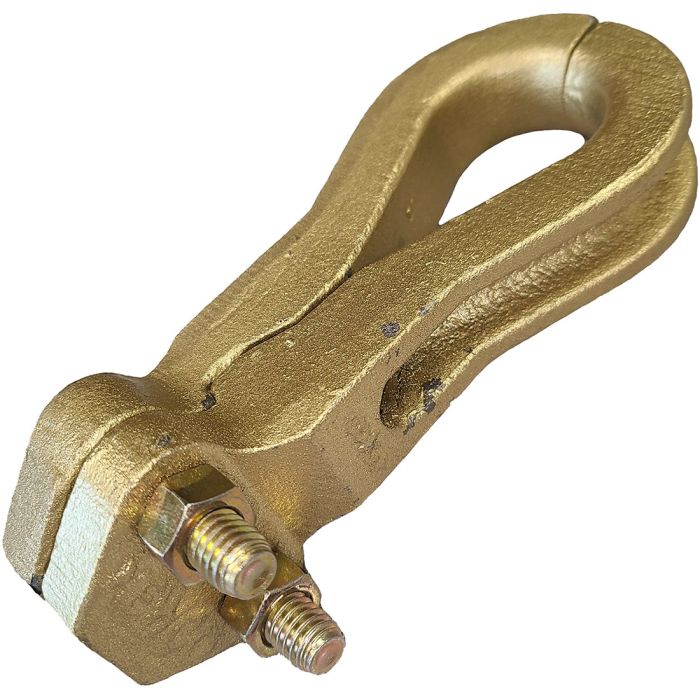

The Muncy Newco Combination Clamp and Thimble provides a simple, efficient wire rope coupling which derives its extraordinary holding power from its basic design. Properly assembled and torqued, this clamp develops 70%-75% of catalog listing of wire rope strength. Recommend usage with 6 strand right lay wire rope only. Efficiencies are based upon extra improved plow steel wire rope. Rugged construction-made to give longer service reduces down time.
- Rope Diameter: 5/16″
- Bolt Diameter: 5/16″
- Bolts Length: 1-1/2″
- Torque Measurement: 19 ft-lbs
- Working Load Limit (WLL): 1600 lbs
- US Patent No. 2600417
