Muncy Stainless Steel Flemish Eye Sleeve 1/4″

• Rope Size: 1/4″
• Wall Thickness: 3/32″
• After Swage Diameter: 0.50″

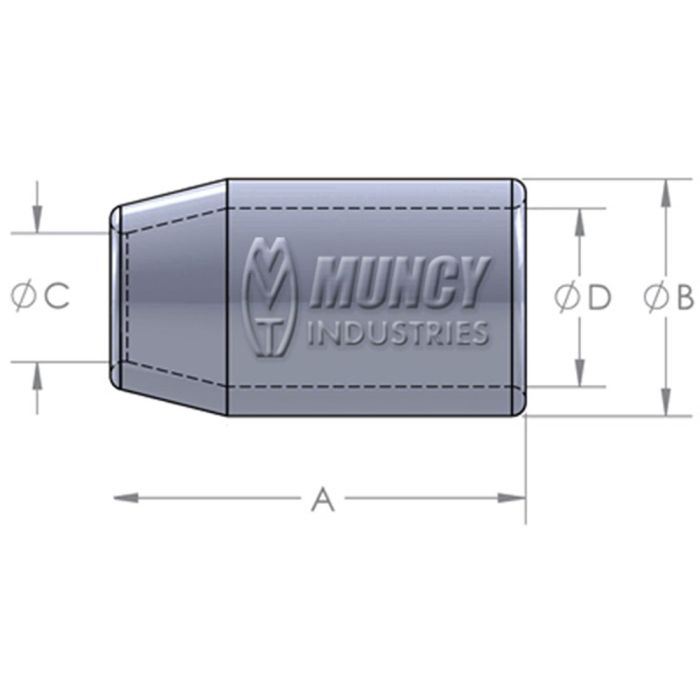

• Dimension A: 1″
• Dimension B: 21/32″
• Dimension C: 21/64″
• Dimension D: 15/32″
• Dimension E: 9/32″
• Specially treated for better swageability
• Swage with standard Tapered Flemish Eye Sleeved Dies

CAUTION: Flemish Eye Stainless Steel Sleeves are recommended for use on 6×19 and 6×37 IPS or XIP (EIP), RRL, FC or IWRC wire rope. Proper swaging practices are the sling manufacturer’s responsibility. Before using sleeves with other type lay, construction or grade of wire rope, it is recommended that the termination be tested to prove the adequacy of the assembly for its intended use.
