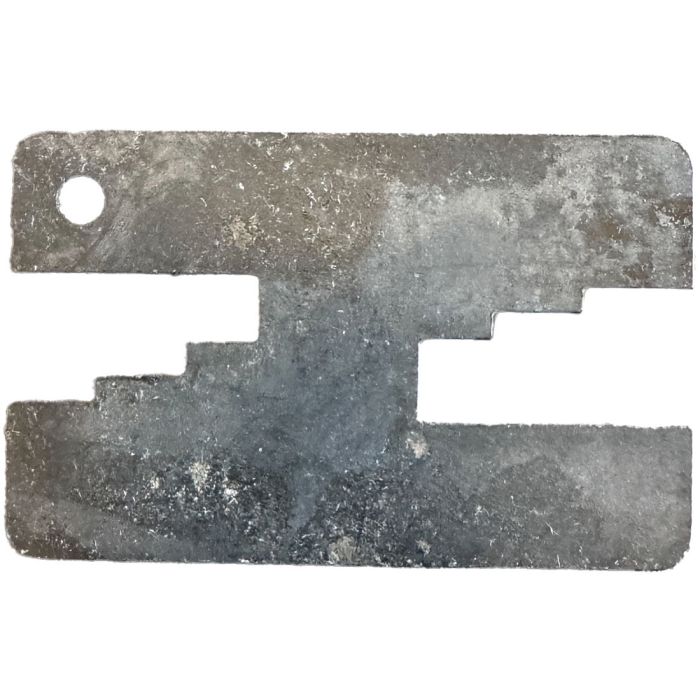

Nicopress #2931 Go Gauge

The Nicopress #2931 “Go” Gauge is used to assure proper swaging of Locoloc aluminum, copper and stainless steel sleeves with Nicopress tools. These simple “Go” gauges will determine if your tools are out of adjustment or alignment.

When the proper slot in the gauge slips over the compressed area of the sleeve after swaging then your swage is satisfactory

If the proper slot does not fit over the compressed area of the sleeve after swaging then your tool is out of adjustment and your cable assembly will not hold the rated breaking strength of the cable which should be the result when oval sleeves are used to form a loop or eye in a cable assembly

Stop sleeves must also be properly compresses and gauges to reach their rated loads which is 1/3 to 1/2 the breaking strength of the cable, depending on the cable diameter

• Application: Power Distribution
