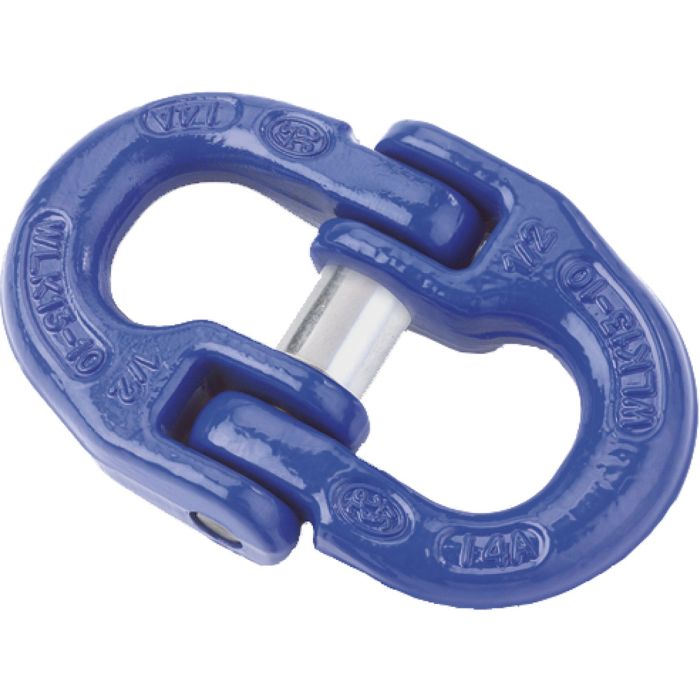

Peerless V10 Grade 100 Coupling Link 5/8″ (WLL 22,600 lbs)

The Peerless V10™  Coupling Link is an essential component of mechanically coupled slings and is primarily used to connect chain sling legs to the master link or fittings.

Features:

• Quenched and tempered before proof testing
• Fatigue Tested at 1.5 times the WLL for 20,000 cycles
• Proof Tested at 2.5 x the WLL
• For use with Grade 80/100 chain slings

Specifications:

• Size: 5/8″
• Working Load Limit (WLL): 22,600 lbs
• Pin Size: 0.55″ x 4.17″
• Material: Premium Fine Grain Alloy Steel
• Finish: Blue Powder Coat Finish
• Design Factor 5:1
• Standards: ASTM A952, EN1677, ASME 30.10
• Made in Italy
