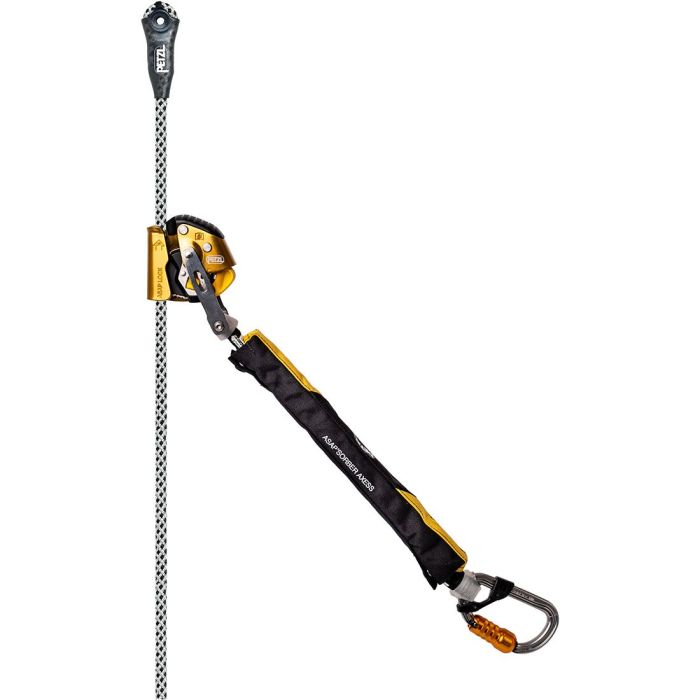

Petzl ASAP LOCK AXESS Kit

Petzl’s ASAP LOCK AXESS Kit is a pre-assembled and ready-to-use personal fall arrest system. This kit includes a mobile fall arrester, an energy absorber, and a connector.

Installed on a lifeline, this mobile fall arrester follows the user as they move, whether on an inclined or vertical surface. In case of a shock load or sudden acceleration, they lock onto the lifeline and stop the worker, even if grabbed during the fall.

The ASAP LOCK AXESS assembly is ANSI Z359.15 compliant only when used with RAY 11 Rope (with or without sewn termination; sold separately).

• Components

  • ASAP LOCK Mobile Fall Arrester

  • Constant fall protection: arrests falls, slides, and uncontrolled descents
  • Works on vertical or angled rope
  • Moves up or down the rope, without any manual operation
  • Easy to install and remove at any point on the rope
  • Integrated locking function allows the user to immobilize the device in order to reduce the potential fall distance. In the event of a strong wind, this function also prevents the rope from being blown upward
  • Connection arm makes the system drop-resistant when passing intermediate anchors
  • ASAP’SORBER AXESS
  • Length: 40cm (7.87″)
  • May only be used with an ASAP or ASAP LOCK mobile fall arrester
  • Allows the user to keep the rope at a distance to free up the work area and protect the rope from sharp tools and harmful contact points
  • Tearing of the energy absorber webbing limits the impact force on the user
  • Designed for users who weigh between 50 and 130 kg (110 lbs – 286 lbs)
  • Can be used in two-person rescue situations for a maximum load of 550 lbs (250 kg)
  • Durable fabric pouch with opening system at each end protects the energy absorber from abrasion or contaminants while allowing for regular inspection of the absorber
  • Ends equipped with STRING to hold the connector in position and protect the webbing from abrasion
  • Connectors
    • Bm’D
      • Lightweight asymmetrical carabiner made of aluminum
      • TRIACT-LOCK automatic locking system
      • H-shaped cross-section
    • CAPTIV Connector Positioning Bar
    • Designed to promote loading of the carabiner on the major axis and to limit the risk of rotation
    • Keeps the device or lanyard integrated with the carabiner, limiting the risk of losing them
