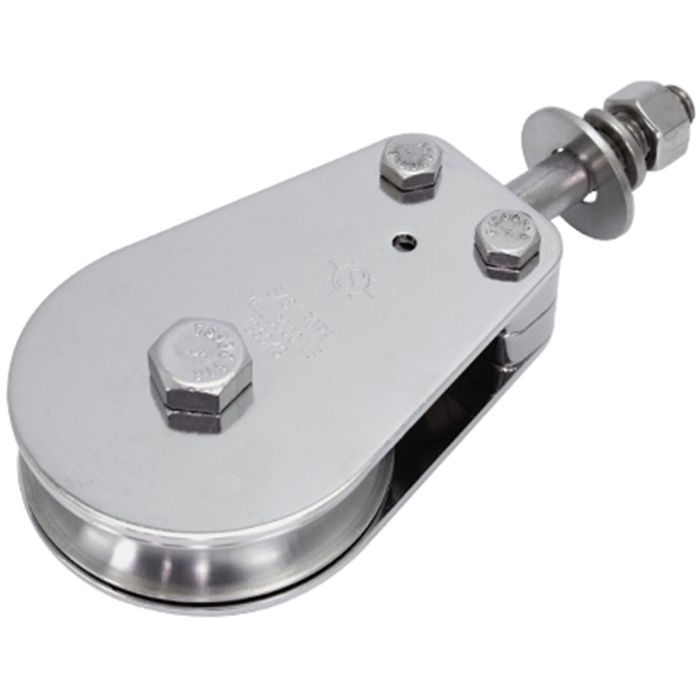

PULLPRO™ Bolt Head Block for 7/16″ Rope – Bronze Bushing

The PULLPRO™ Bolt Head Block – Rope is crafted from superior raw materials. It boasts a grade 316 stainless steel bolt head, providing strength and fatigue resistance. The block’s 316 stainless steel cast head allows versatile configurations. Polished 316 stainless steel cheeks enhance durability, ensuring performance in tough conditions. The polished cheeks display fibrous rope size, working load limit, and the Suncor logo with permanent stamping. A stainless steel locknut facilitates sheave removal, aiding premade fibrous rope installation and maintenance. The PULLPRO™ sheave is constructed from 316 stainless steel, ensuring optimal corrosion resistance and durability. Meets B30.26 specifications for reliable functionality.

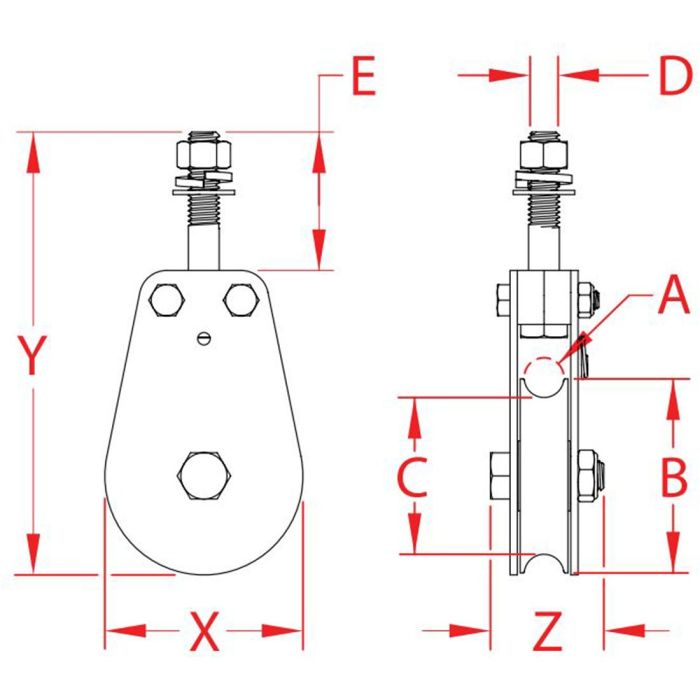

• Rope Size (A): 7/16″
• Sheave Diameter (B): 2.00″
• (C): 1.65″
• Thread/Bolt Size (D): 5/16″-18
• (E): 1.51″
• Height (X): 2.04″
• Length (Y): 4.75″
• Width (Z): 1.15″
• Bushing/Bearing Type: Bronze Bushing
• Working Load Limit: 1000 lbs (0.50 tons)
