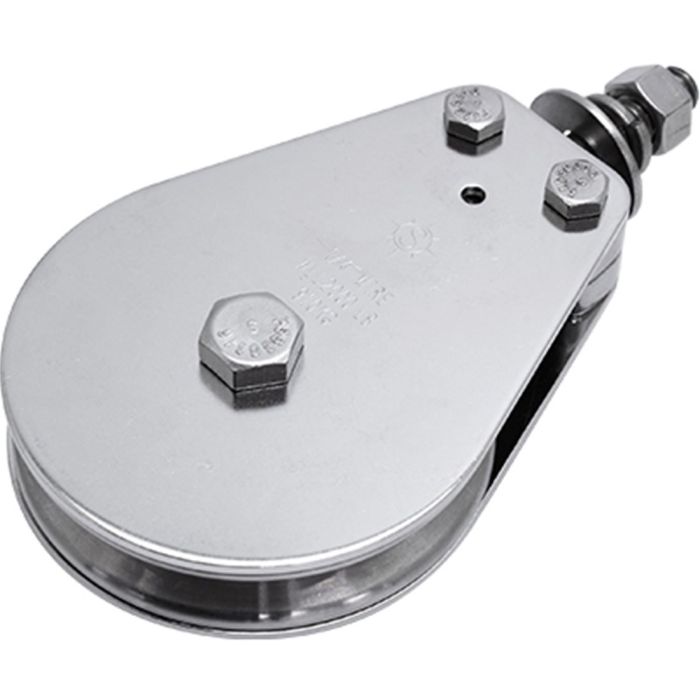

PULLPRO™ Bolt Head Wire Rope Block HiLoad 5/16″ – Ball Bearing

The PULLPRO™ Bolt Head Block HiLOAD – Wire is constructed from top-grade raw materials. It boasts a grade 316 stainless steel bolt head, providing exceptional strength and fatigue resistance. The block’s 316 stainless steel cast head allows for versatile configurations. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s resilience in challenging conditions. The polished cheeks display wire rope size, working load limit, and the Suncor logo with a permanent stamp. A stainless steel locknut facilitates sheave removal, enabling convenient premade wire rope installation and maintenance. Designed for 180° rope turns with a high D/d ratio, indicating a premium, larger diameter block assembly. The PULLPRO™ sheave is crafted from 316 stainless steel, ensuring maximum corrosion resistance and durability. Meets B30.26 specifications, guaranteeing reliable performance.

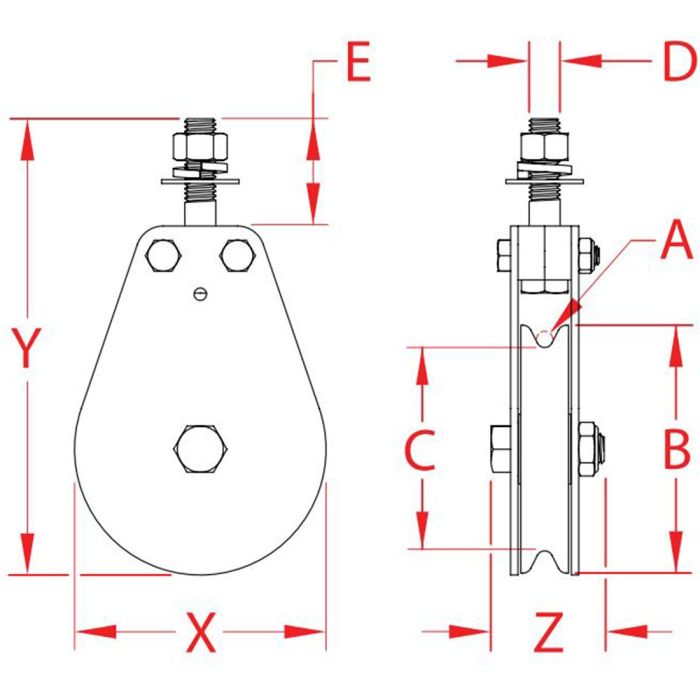

• Wire Rope Size (A): 5/16″
• Sheave Diameter (B): 5.00″
• (C): 4.20″
• Thread/Bolt Size (D): 1/2″-13
• (E): 2.23″
• Height (X): 5.10″
• Length (Y): 9.28″
• Width (Z): 1.80″
• Bushing/Bearing Type: Ball Bearing
• Working Load Limit: 3000 lbs (1.50 tons)
