The PULLPRO™ Bolt Head Block LoLOAD – Wire is crafted from premium raw materials. It features a grade 316 stainless steel bolt head that offers strength and fatigue resistance. The block can be configured in various ways using the 316 stainless steel cast head. Polished 316 stainless steel cheeks enhance durability, making the block suitable for harsh conditions. The polished cheeks display wire rope size, working load limit, and the Suncor logo with permanent stamping. A stainless steel locknut allows for sheave removal, facilitating premade wire rope installation and maintenance. Designed for small deflection turns under 90° with a lower D/d ratio, denoted by “LoLOAD.” The PULLPRO™ sheave is constructed from 316 stainless steel, ensuring maximum corrosion resistance and durability. Meets B30.26 specifications for reliable performance.

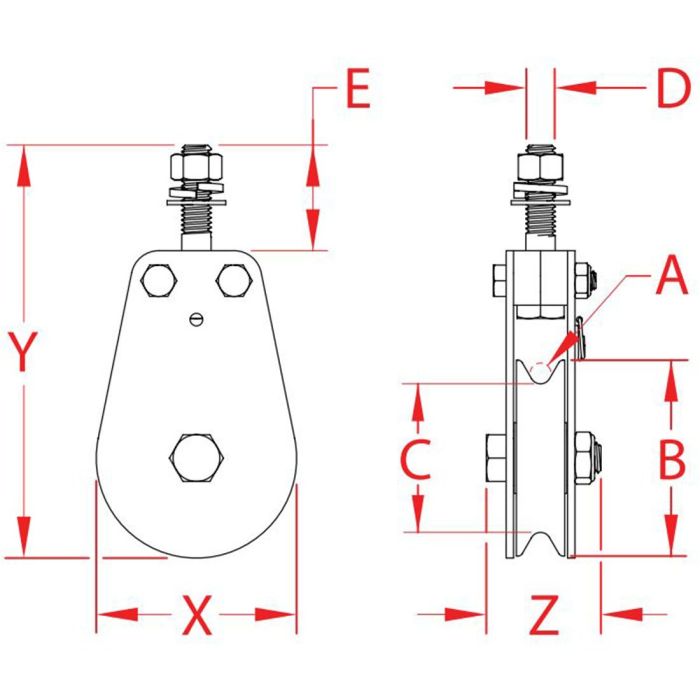

- Wire Rope Size (A): 3/8″
- Sheave Diameter (B): 4.00″
- (C): 3.04″
- Thread/Bolt Size (D): 1/2″-13
- (E): 2.23″
- Height (X): 4.06″
- Length (Y): 7.86″
- Width (Z): 1.80″
- Bushing/Bearing Type: Ball Bearing
- Working Load Limit: 3000 lbs (1.50 tons)
