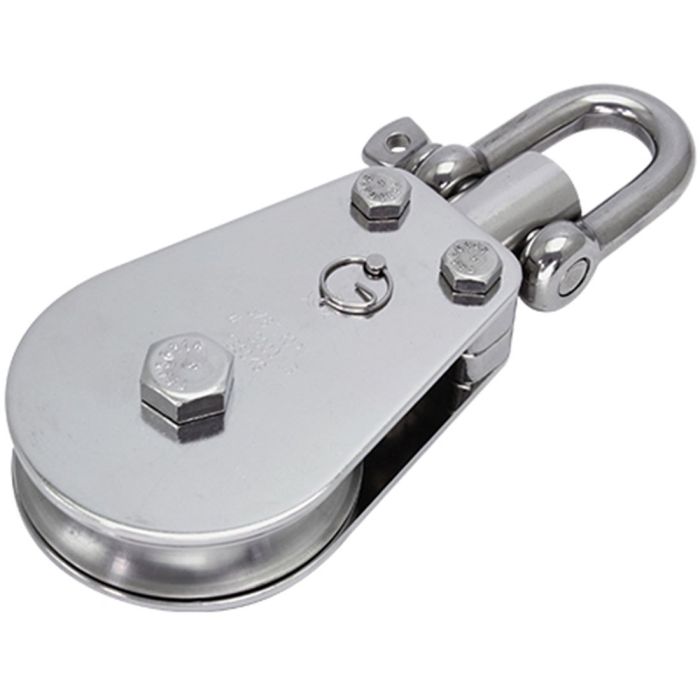

PULLPRO™ D Shackle Block for 7/16″ Rope – Ball Bearing

The PULLPRO™ D Shackle Block – Rope is expertly crafted using top-tier raw materials. It boasts a grade 316 stainless steel forged D Shackle, ensuring robust strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration possibilities. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s resilience in challenging environments. The polished cheeks feature a permanent stamp displaying fibrous rope size, working load limit, and the Suncor logo. A stainless steel locknut facilitates sheave removal, making premade fibrous rope installation and maintenance convenient. The PULLPRO™ sheave is constructed from 316 stainless steel, ensuring maximum resistance to corrosion and durability. Meets B30.26 specifications, assuring adherence to industry standards.

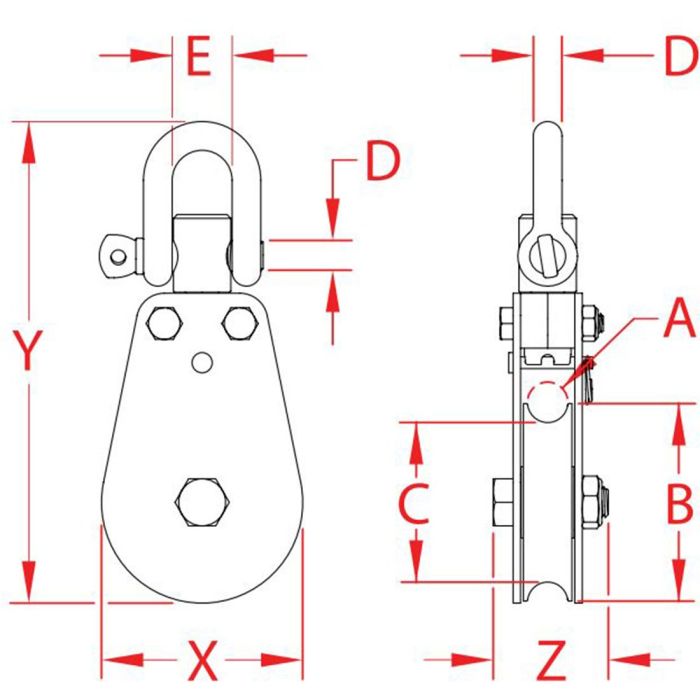

• Rope Size (A): 7/16″
• Sheave Diameter (B): 2.00″
• (C): 1.65″
• Shackle Size (D): 5/16″ (8mm)
• (E): 0.66″
• Height (X): 2.04″
• Length (Y): 5.17″
• Width (Z): 1.15″
• Bushing/Bearing Type: Ball Bearing
• Working Load Limit: 1000 lbs (0.50 tons)
