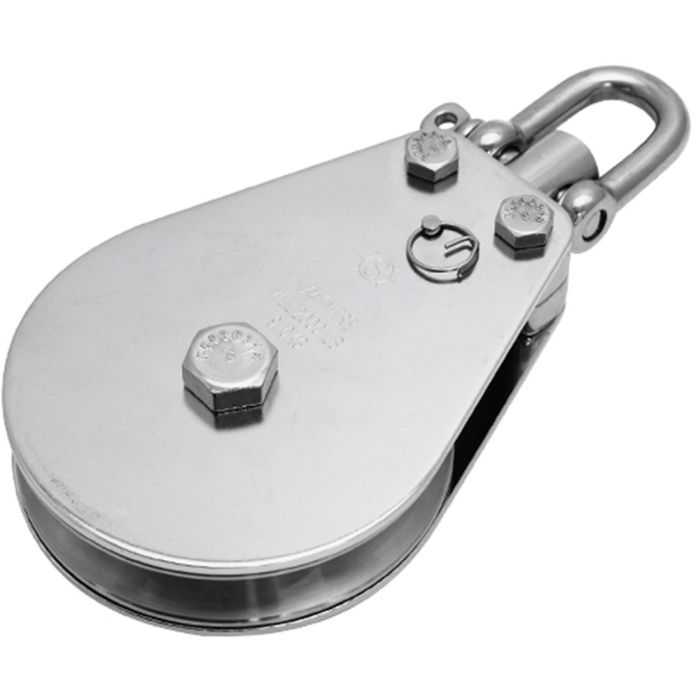

PULLPRO™ D Shackle Wire Rope Block HiLoad 3/16″ – Ball Bearing

The PULLPRO™ D Shackle Block HiLOAD – Wire is meticulously crafted from the finest raw materials. It features a grade 316 stainless steel forged D Shackle, providing exceptional strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s reliability in challenging environments. The polished cheeks feature a permanent stamp displaying wire rope size, working load limit, and the Suncor logo. A stainless steel locknut facilitates sheave removal, aiding in convenient premade wire rope installation and maintenance. Designed for premium performance, it suits larger diameter blocks and 180° rope turns with a high D/d ratio. The PULLPRO™ sheave is constructed from 316 stainless steel, guaranteeing optimal corrosion resistance and durability. Meets B30.26 specifications, ensuring adherence to industry standards.

• Wire Rope Size (A): 3/16″
• Sheave Diameter (B): 3.00″
• (C): 2.42″
• Shackle Size (D): 3/8″ (10mm)
• (E): 0.83″
• Height (X): 3.06″
• Length (Y): 6.53″
• Width (Z): 1.48″
• Bushing/Bearing Type: Ball Bearing
• Working Load Limit: 1500 lbs (0.75 tons)
