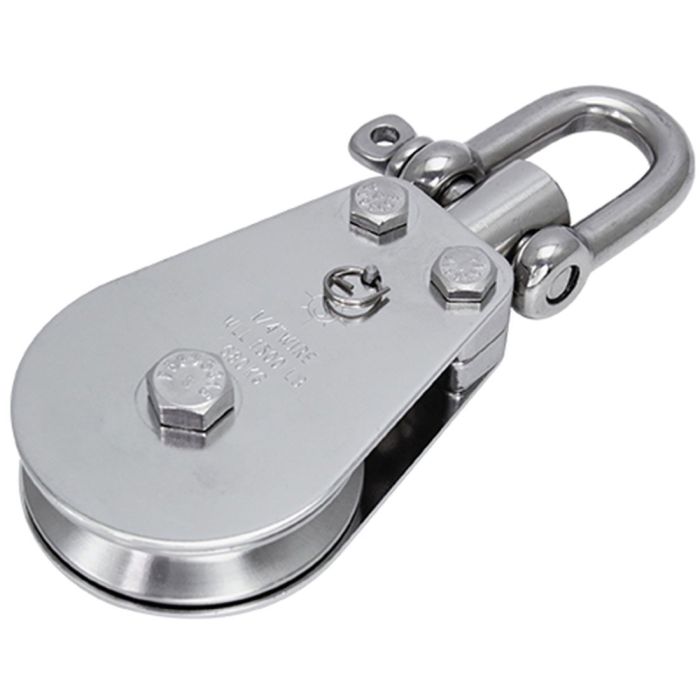

PULLPRO™ D Shackle Wire Rope Block LoLoad 3/8″ – Ball Bearing

The PULLPRO™ D Shackle Block LoLOAD – Wire is meticulously crafted from premium-grade raw materials. It features a grade 316 stainless steel forged D Shackle, providing exceptional strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s reliability in challenging conditions. The polished cheeks permanently display wire rope size, working load limit, and the Suncor logo. A stainless steel locknut facilitates sheave removal, aiding in easy premade wire rope installation and maintenance. Designed for small deflection turns under 90° with a lower D/d ratio, indicated as “LoLOAD.” The PULLPRO™ sheave is constructed from 316 stainless steel, ensuring maximum corrosion resistance and durability. Meets B30.26 specifications, guaranteeing adherence to industry standards.

• Wire Rope Size (A): 3/8″
• Sheave Diameter (B): 4.00″
• (C): 3.04″
• Shackle Size (D): 15/32″ (12mm)
• (E): 0.98″
• Height (X): 4.06″
• Length (Y): 8.35″
• Width (Z): 1.80″
• Bushing/Bearing Type: Ball Bearing
• Working Load Limit: 3000 lbs (1.50 tons)
