PULLPRO™ SA Bow Shackle Block for 1″ Rope – Ball Bearing

The PULLPRO™ SA Bow Shackle Block – Rope is meticulously crafted from premium raw materials.It showcases a grade 316 stainless steel forged SA Bow Shackle, providing robust strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s resilience in demanding conditions. The polished cheeks permanently display fibrous rope size, working load limit, and the Suncor logo. A stainless steel locknut enables sheave removal, facilitating convenient premade fibrous rope installation and maintenance. The PULLPRO™ sheave is crafted from 316 stainless steel, ensuring maximum resistance to corrosion and durability. Meets B30.26 specifications, ensuring reliable adherence to standards.

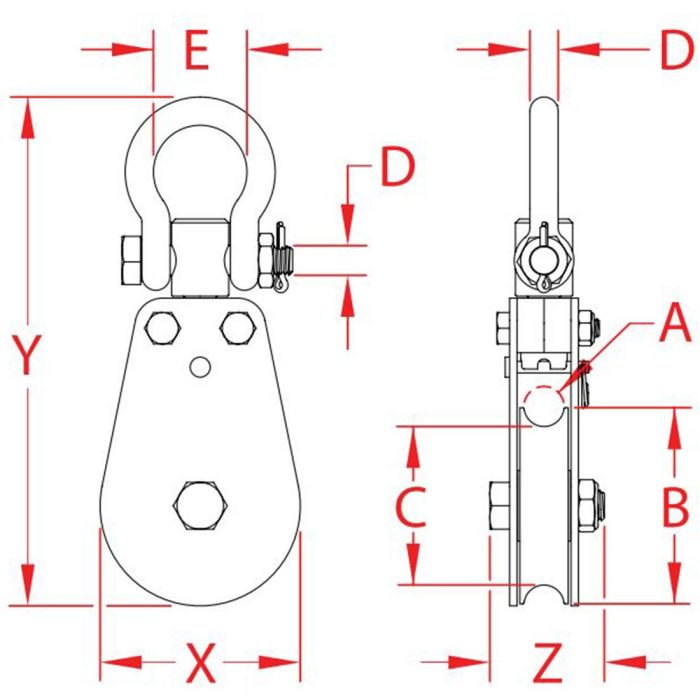

• Rope Size (A): 1″
• Sheave Diameter (B): 5.00″
• (C): 4.03″
• Shackle Size (D): 3/4″ (20mm)
• (E): 2.55″
• Height (X): 5.10″
• Length (Y): 12.83″
• Width (Z): 2.78″
• Bushing/Bearing Type: Ball Bearing
• Working Load Limit: 5500 lbs (2.75 tons)
