PULLPRO™ SA Bow Shackle Wire Rope Block HiLoad 3/8″ – Bronze Bushing

The PULLPRO™ SA Bow Shackle Block HiLOAD – Wire is crafted from the finest raw materials. It showcases a grade 316 stainless steel forged SA Bow Shackle, providing exceptional strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s reliability in challenging environments. The polished cheeks feature a permanent stamp displaying wire rope size, working load limit, and the Suncor logo. A stainless steel locknut enables sheave removal, facilitating easy premade wire rope installation and maintenance. Designed for premium performance, it suits larger diameter blocks and 180° rope turns with a high D/d ratio. The PULLPRO™ sheave is crafted from 316 stainless steel, guaranteeing optimal corrosion resistance and durability. Meets B30.26 specifications, ensuring adherence to industry standards.

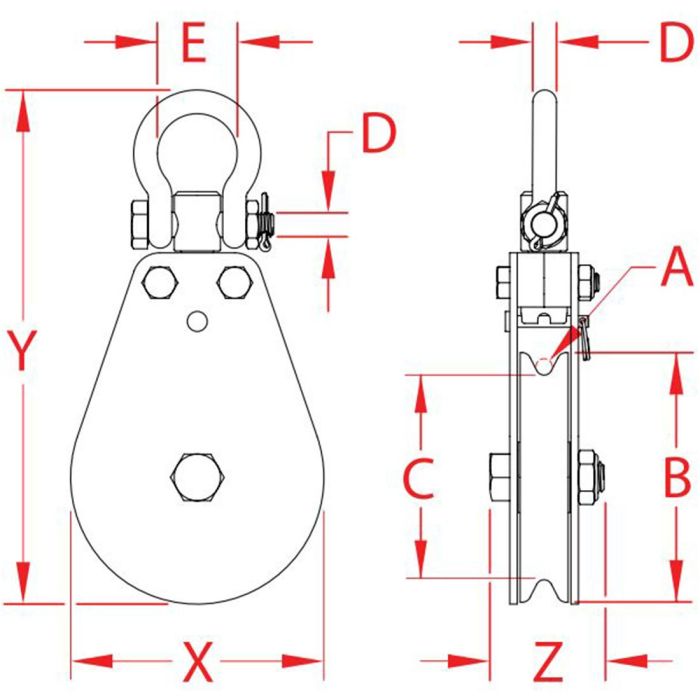

• Wire Rope Size (A): 3/8″
• Sheave Diameter (B): 6.00″
• (C): 5.00″
• Shackle Size (D): 5/8″ (16mm)
• (E): 2.20″
• Height (X): 6.10″
• Length (Y): 12.29″
• Width (Z): 2.20″
• Bushing/Bearing Type: Bronze Bushing
• Working Load Limit: 4000 lbs (2 tons)
