PULLPRO™ SA Bow Shackle Wire Rope Block LoLoad 5/16″ – Bronze Bushing

The PULLPRO™ SA Bow Shackle Block LoLOAD – Wire is meticulously crafted from premium raw materials. It features a grade 316 stainless steel forged SA Bow Shackle, providing robust strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s resilience in tough conditions. The polished cheeks permanently display wire rope size, working load limit, and the Suncor logo. A stainless steel locknut enables sheave removal, facilitating easy premade wire rope installation and maintenance. Designed for small deflection turns under 90° with a lower D/d ratio, denoted as “LoLOAD. “The PULLPRO™ sheave is crafted from 316 stainless steel, ensuring maximum corrosion resistance and durability. Meets B30.26 specifications, guaranteeing adherence to industry standards.

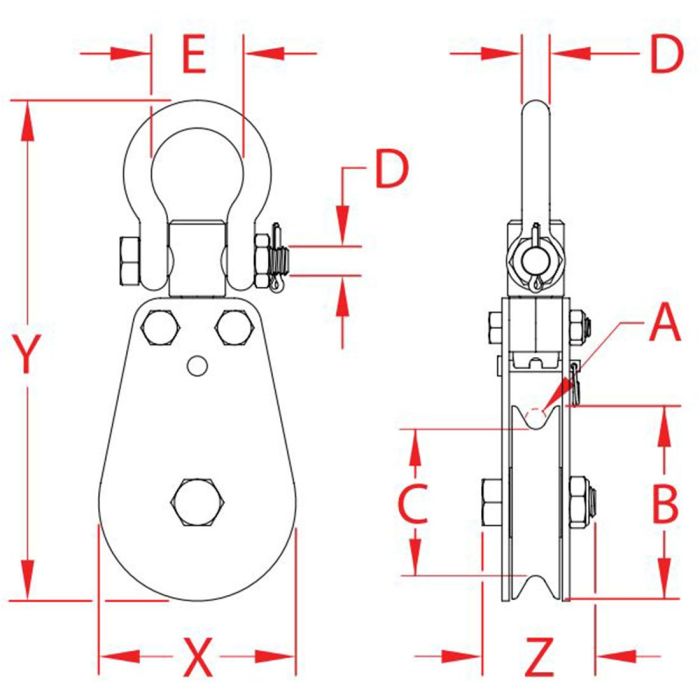

• Wire Rope Size (A): 5/16″
• Sheave Diameter (B): 3.13″
• (C): 2.33″
• Shackle Size (D): 3/8″ (10mm)
• (E): 1.28″
• Height (X): 3.20″
• Length (Y): 8.11″
• Width (Z): 1.80″
• Bushing/Bearing Type: Bronze Bushing
• Working Load Limit: 2000 lbs (1 tons)
