PULLPRO™ Swivel Eye Block for 5/8″ Rope – Bronze Bushing

The PULLPRO™ Swivel Eye Block – Rope is meticulously crafted from premium raw materials. It showcases a grade 316 stainless steel forged swivel eye, providing exceptional strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s reliability in challenging conditions. The polished cheeks feature a permanent stamp displaying fibrous rope size, working load limit, and the Suncor logo. A stainless steel locknut facilitates sheave removal, making premade fibrous rope installation and maintenance convenient. The PULLPRO™ sheave is constructed from 316 stainless steel, ensuring maximum resistance to corrosion and durability. Meets B30.26 specifications, guaranteeing adherence to industry standards.

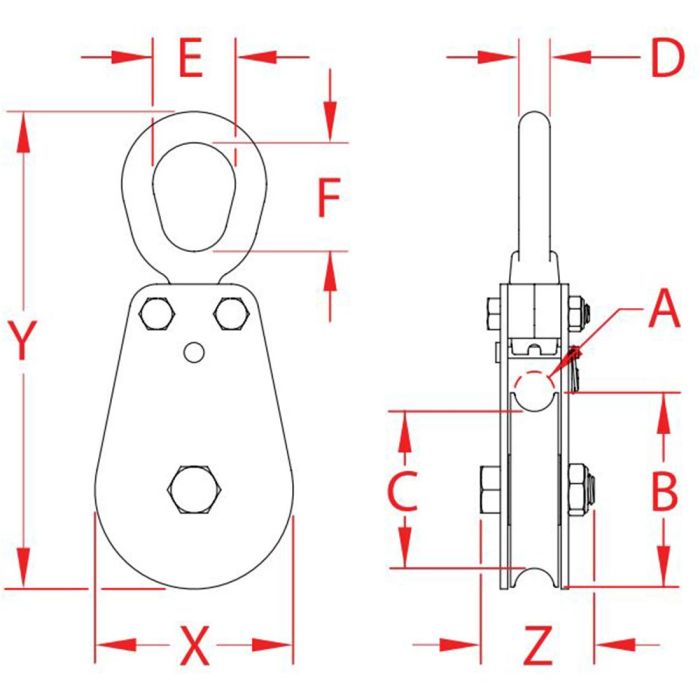

• Rope Size (A): 5/8″
• Sheave Diameter (B): 3.13″
• (C): 2.53″
• Eye Size (D): 0.50″
• (E): 1.33″
• (F): 1.75″
• Height (X): 3.20″
• Length (Y): 7.69″
• Width (Z): 1.80″
• Bushing/Bearing Type: Bronze Bushing
• Working Load Limit: 3000 lbs (1.50 tons)
