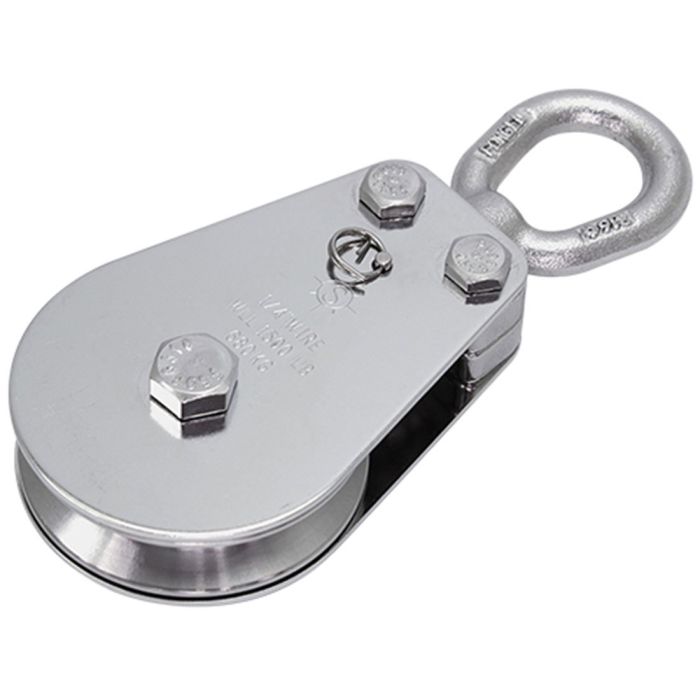

PULLPRO™ Swivel Eye Wire Rope Block LoLoad 3/8″ – Bronze Bushing

The PULLPRO™ Swivel Eye Block LoLOAD – Wire is expertly crafted from top-tier raw materials. It features a grade 316 stainless steel forged swivel eye, ensuring robust strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s resilience in harsh environments. The polished cheeks permanently display wire rope size, working load limit, and the Suncor logo. A stainless steel locknut enables sheave removal, facilitating easy premade wire rope installation and maintenance. Designed for small deflection turns under 90° with a lower D/d ratio, indicated by “LoLOAD.” The PULLPRO™ sheave is constructed from 316 stainless steel, ensuring maximum corrosion resistance and durability. Meets B30.26 specifications, ensuring adherence to industry standards.

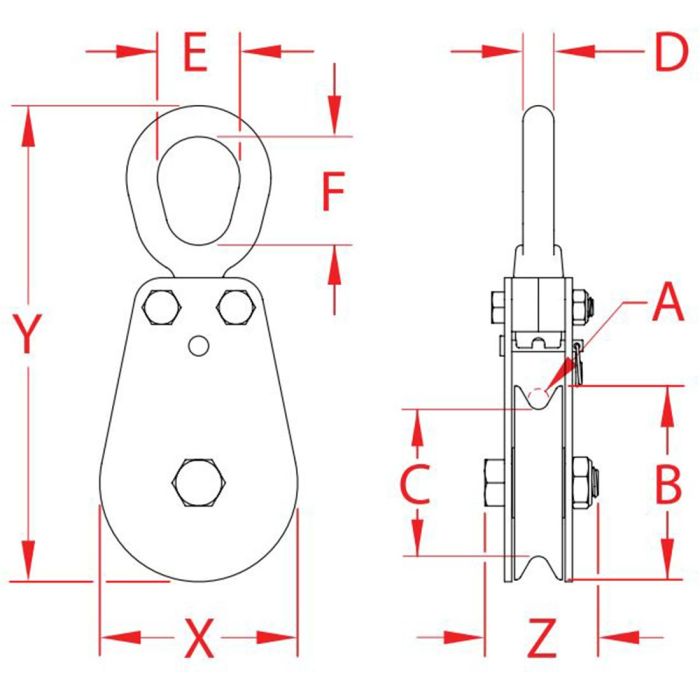

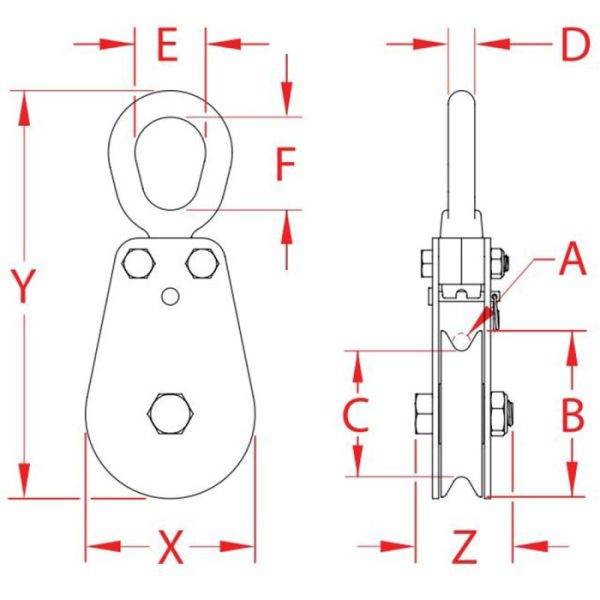

• Wire Rope Size (A): 3/8″
• Sheave Diameter (B): 4.00″
• (C): 3.04″
• Eye Size (D): 0.50″
• (E): 1.33″
• (F): 1.75″
• Height (X): 4.06″
• Length (Y): 8.41″
• Width (Z): 1.80″
• Bushing/Bearing Type: Bronze Bushing
• Working Load Limit: 3000 lbs (1.50 tons)
