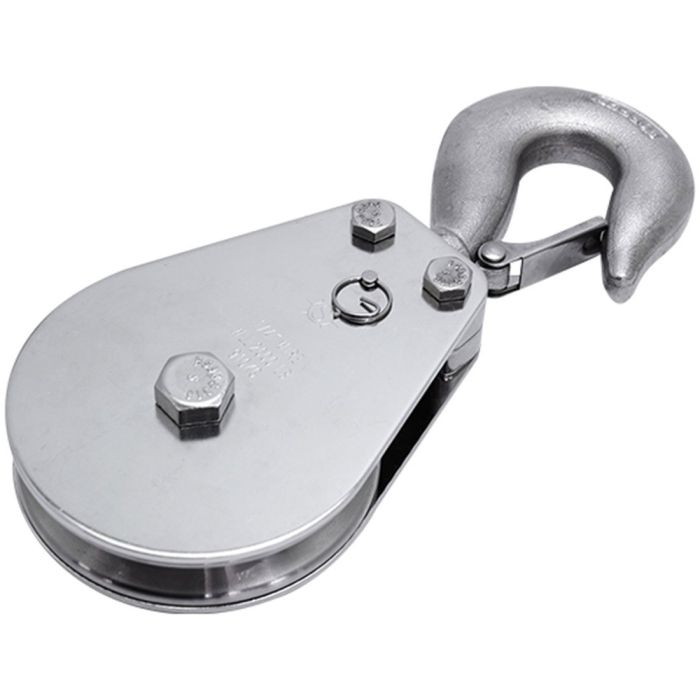

PULLPRO™ Swivel Hook Wire Rope Block HiLoad 1/8″ – Bronze Bushing

The PULLPRO™ Swivel Hook Block HiLOAD – Wire is meticulously crafted from top-grade raw materials. It features a grade 316 stainless steel forged swivel hook, providing exceptional strength and fatigue resistance. The block’s 316 stainless steel cast head offers versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s resilience in challenging environments. The polished cheeks feature a permanent stamp displaying wire rope size, working load limit, and the Suncor logo. A stainless steel locknut facilitates sheave removal, aiding in convenient premade wire rope installation and maintenance. Designed for premium performance, it suits larger diameter blocks and 180° rope turns with a high D/d ratio. The PULLPRO™ sheave is constructed from 316 stainless steel, ensuring maximum corrosion resistance and durability. Meets B30.26 specifications, guaranteeing adherence to industry standards.

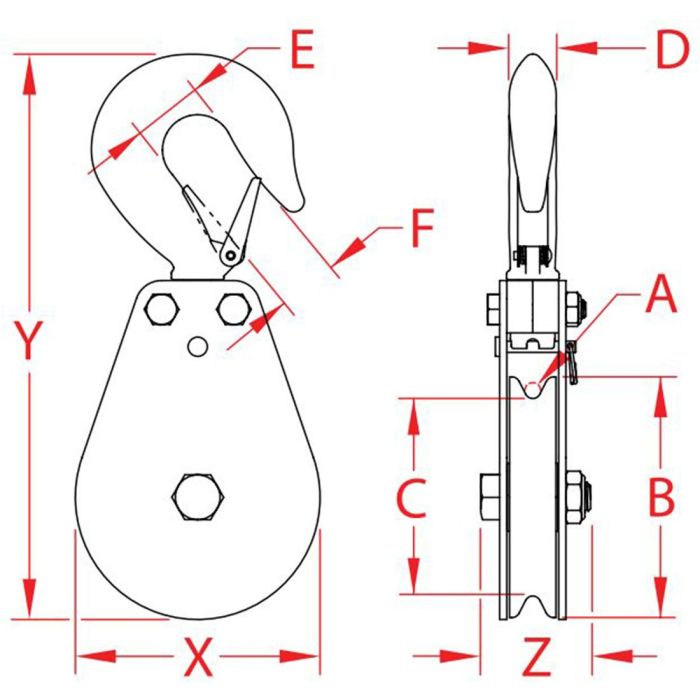

• Wire Rope Size (A): 1/8″
• Sheave Diameter (B): 2.00″
• (C): 1.64″
• (D): 0.49″
• (E): 0.88″
• (F): 0.68″
• Height (X): 2.04″
• Length (Y): 5.39″
• Width (Z): 0.99″
• Bushing/Bearing Type: Bronze Bushing
• Working Load Limit: 500 lbs (0.25 tons)
• Clevis pin/cotter ring not included
