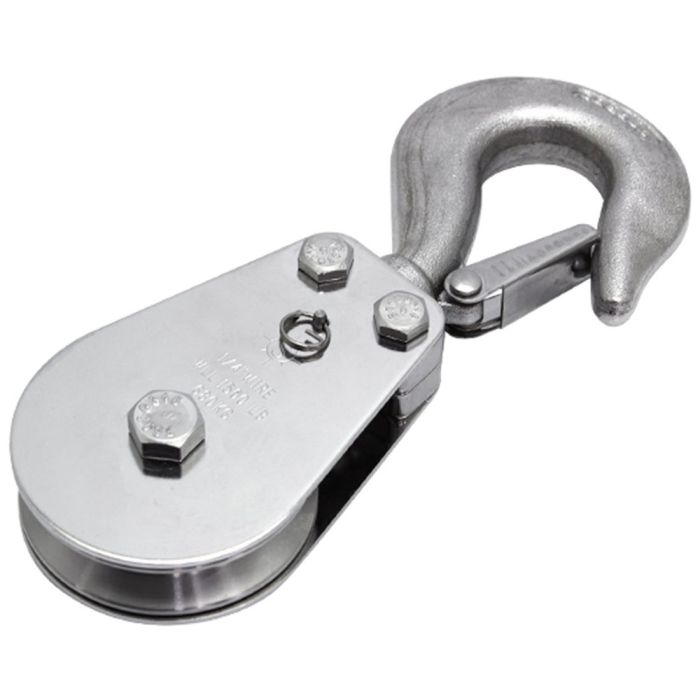

PULLPRO™ Swivel Hook Wire Rope Block LoLoad 1/4″ – Ball Bearing

The PULLPRO™ Swivel Hook Block LoLOAD – Wire is crafted from top-tier raw materials. It features a grade 316 stainless steel forged swivel hook, providing robust strength and fatigue resistance. The block’s 316 stainless steel cast head allows versatile configuration options. Polished 316 stainless steel cheeks enhance durability, ensuring the block’s reliability in challenging environments. The polished cheeks permanently display wire rope size, working load limit, and the Suncor logo. A stainless steel locknut facilitates sheave removal, aiding easy premade wire rope installation and maintenance. Designed for small deflection turns under 90° with a lower D/d ratio, indicated by “LoLOAD.” The PULLPRO™ sheave is constructed from 316 stainless steel, guaranteeing optimal corrosion resistance and durability. Meets B30.26 specifications, ensuring adherence to industry standards.

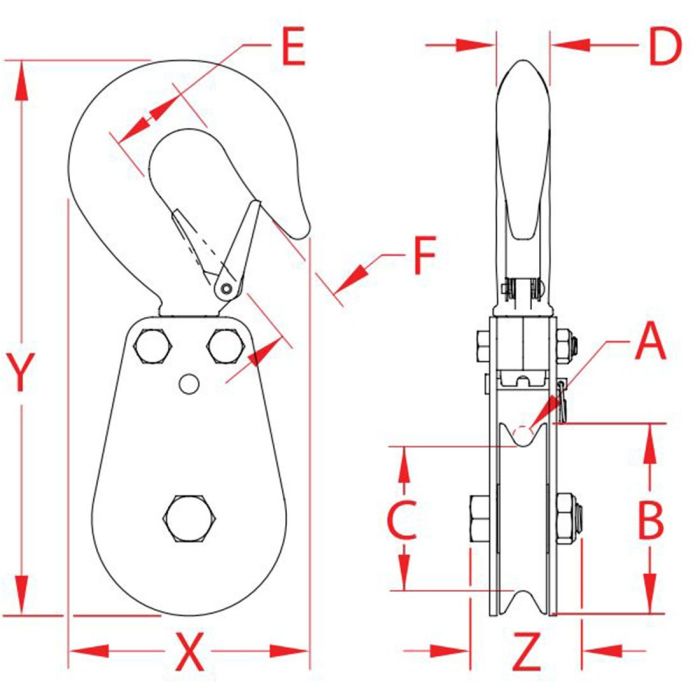

• Wire Rope Size (A): 1/4″
• Sheave Diameter (B): 2.50″
• (C): 1.90″
• (D): 0.65″
• (E): 1.13″
• (F): 0.89″
• Height (X): 3.13″
• Length (Y): 7.23″
• Width (Z): 1.48″
• Bushing/Bearing Type: Ball Bearing
• Working Load Limit: 1500 lbs (0.75 tons)
