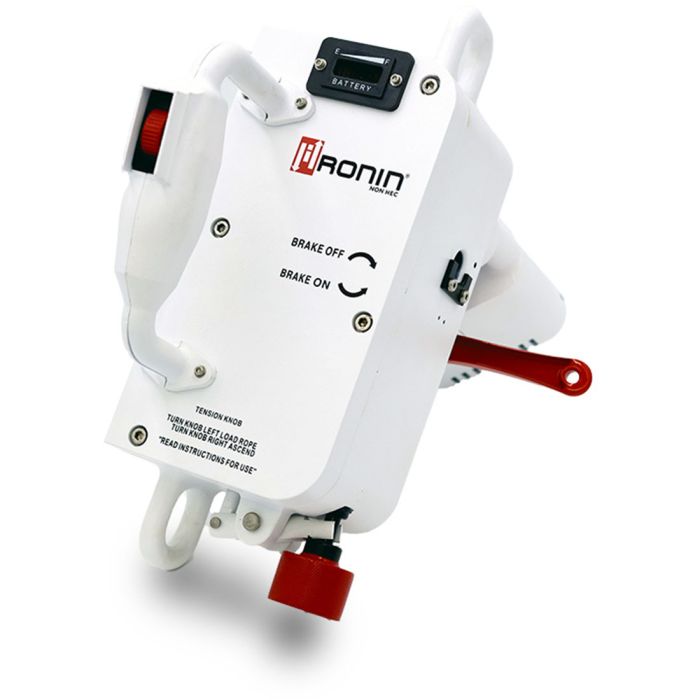

Ronin 2805-11 Non-Human External Cargo Lift Kit

The Ronin Non-Human External Cargo (Non-HEC) Lift is a dedicated Lift that will handle any material hauling needs you have. Both the Ronin Lift anchor points are rated at 5,000 lbs for confident rigging.

With the wireless remote function your teams can raise or lower loads from a safe distance. The variable speed control is smooth and makes it easy to control the heaviest loads. Winch loads in complete confidence with the Ronin Non-HEC Lift. Pair up your Non-HEC Lift with one of the Pole Mounts, Hitch Mounts or Tripod Mounts.

• 400 lbs (181 kg) Safe Working Load
• Variable Speed Control (0.5 – 1.5 ft./sec)
• Hands-Free Braking System
• Gravity Feed Descent
• Hot-Swappable Battery
• Lithium Rechargeable Battery
• Water Resistant IP54 Rating
• Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
• Mechanical Advantage Allowed up to 4:1 ratio to lift, up to 1600 lbs (725 Kg)
• CE Certified (EC and EU Type Examination Cert)

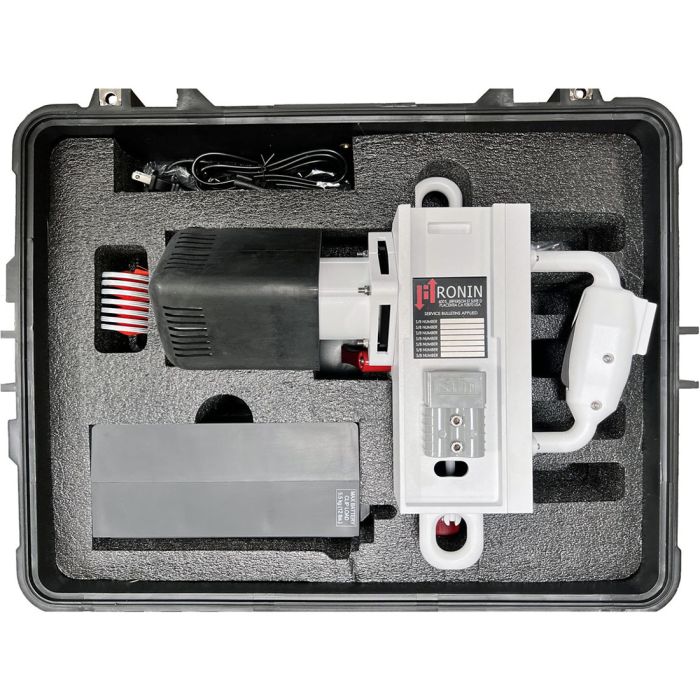

Kit Includes:

• (1) Ronin Lift Ascender (Non-HEC)
• (1) Wireless Remote
• (1) Anti-Panic Handle
• (1) Reverse Function
• (1) Battery
• (1) Charger
• (1) Charger Cable – Type A, B or C
• (1) Hard Case w/ Custom Foam
• (1) Rope Brush
• (1) Rubber Motor Protector
• (1) Perfect Burn Tip

Important! For best results only use the following Ronin approved ropes with the Ronin lift

• Marlow – Ronin HP Rope – 11.5 mm dia
• Sterling – Tech 125 – ½” dia
• Marlow – ProTech 500 – 11.0 mm dia
• Korda’s – Titania 12 – 12 mm dia
• Yale Cordage – Scandere – 11.7 mm dia
• Sterling – HTP Red – 13 mm dia
• Sterling – WorkPro – ½” dia
• Edelrid – Performance Static – 12 mm dia
• Teufelberger – X-Static – 11.7 mm dia
• Teufelberger – KM III Max – 11 mm dia
• Courant – Rebel – 11 mm dia
• Pelican Rope – White Rope – 11 mm dia
• Pelican Rope – 1WPP-160L54-001 – ½” dia
• PMI – RR125BL030M – 12.5 mm dia
• Sterling – Element – ½” dia
• Yale Cordage – Calamine – 11.7 mm dia
• Sterling – Scion – 11.5 mm dia
• PMI – E-Z Bend – 11 mm dia
• Yale Cordage – XTC-16 – 13 mm dia
• Teufelberger – Platinum Protect PES/PA – 11 mm dia
