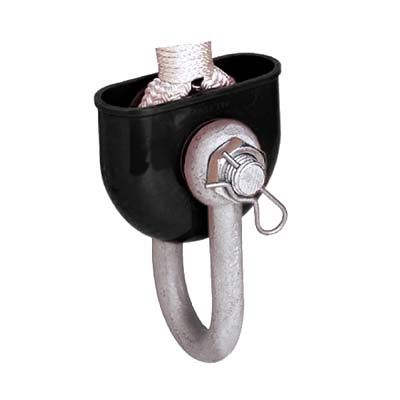

Easily installed into or removed from a premade soft eye. Nylite spool is only 1/7th the weight of steel. Connectors will not deform or rupture from repeated loading. The shackle takes advantage of the high-strength Nylite connector and synthetic rope.
- Shield Color: Black
- Fits Rope Sizes: 1-1/8″ to 1-5/16″
- Spool Material: HP Aluminum
- Working Load Limit: 14.00 tons (28,000 lbs) when used with Nylite Shackle
- Working loads, as given, are based on pin-bore relationships provided by use of the Nylite Shackle. When using a non-standard pin, the working load as given DOES NOT APPLY.
- The HP aluminum spool is available for use with high-performance Class II ropes in sizes -1 through -5
- Aluminum spools are not recommended for continuous use in submerged marine environments
- 4:1 safety factor
