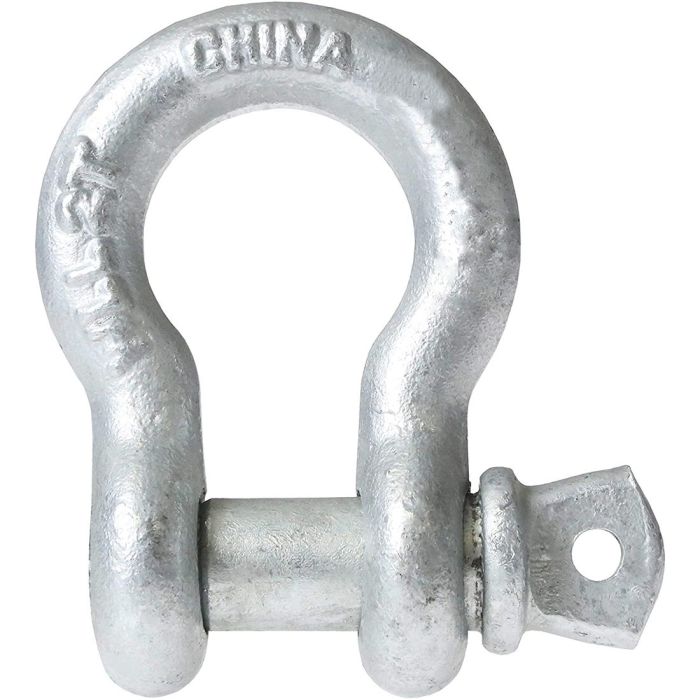

High quality imported Screw Pin Anchor Shackle. Meets performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
Specifications:
- Size (Shackle Body Thickness): 1-1/2″
- Throat Opening (Width Between Ears): 2.38″
- Throat Depth: 5.75″
- Pin Size: 1.63″
- Pin Type: Screw Pin
- Finish: Hot Dip Galvanized
- Material: Carbon Steel Body & Alloy Steel Pin
- Working Load Limit: 17.00 tons (34,000 lbs)
- Working load limit permanently shown on every shackle per ASME B30.26
