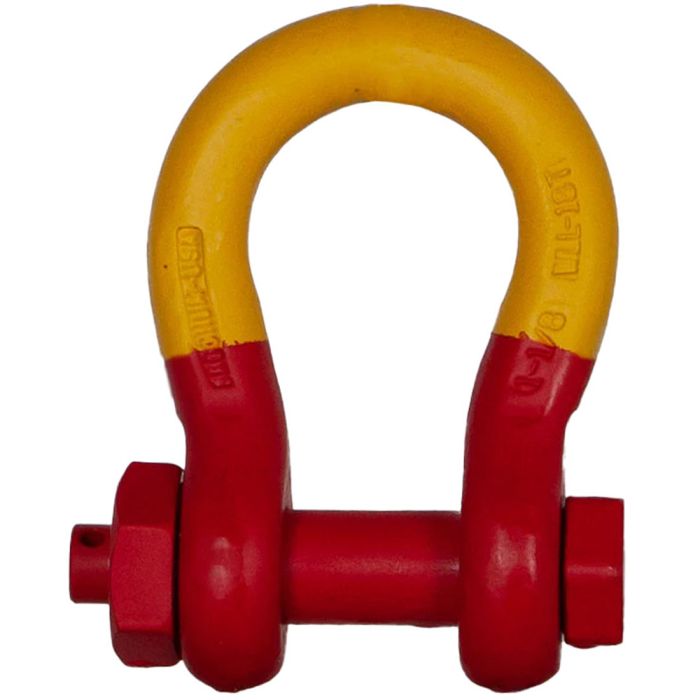

Skookum #320 Alloy Bolt Type Anchor Shackle 3-1/2″ – Painted

Features:

• Forged, quenched, and tempered
• Superior strength, hardness, and uniformity
• Size and WLL permanently imprinted
• Material heat codes imprinted on bale & pin

Specifications:

• Size (Shackle Body Thickness): 3-1/2″
• Throat Opening (Width Between Ears): 5.75″
• Throat Depth: 15.00″
• Pin Size: 3.75″
• Pin Type: Bolt & Nut
• Finish: Painted
• Material: Alloy Steel
• Working Load Limit: 150.00 tons (300,000 lbs)
• Standards & Certifcations: ASME B30.26-1
• Design Factor 5:1
• USA
